Section Details Gallery

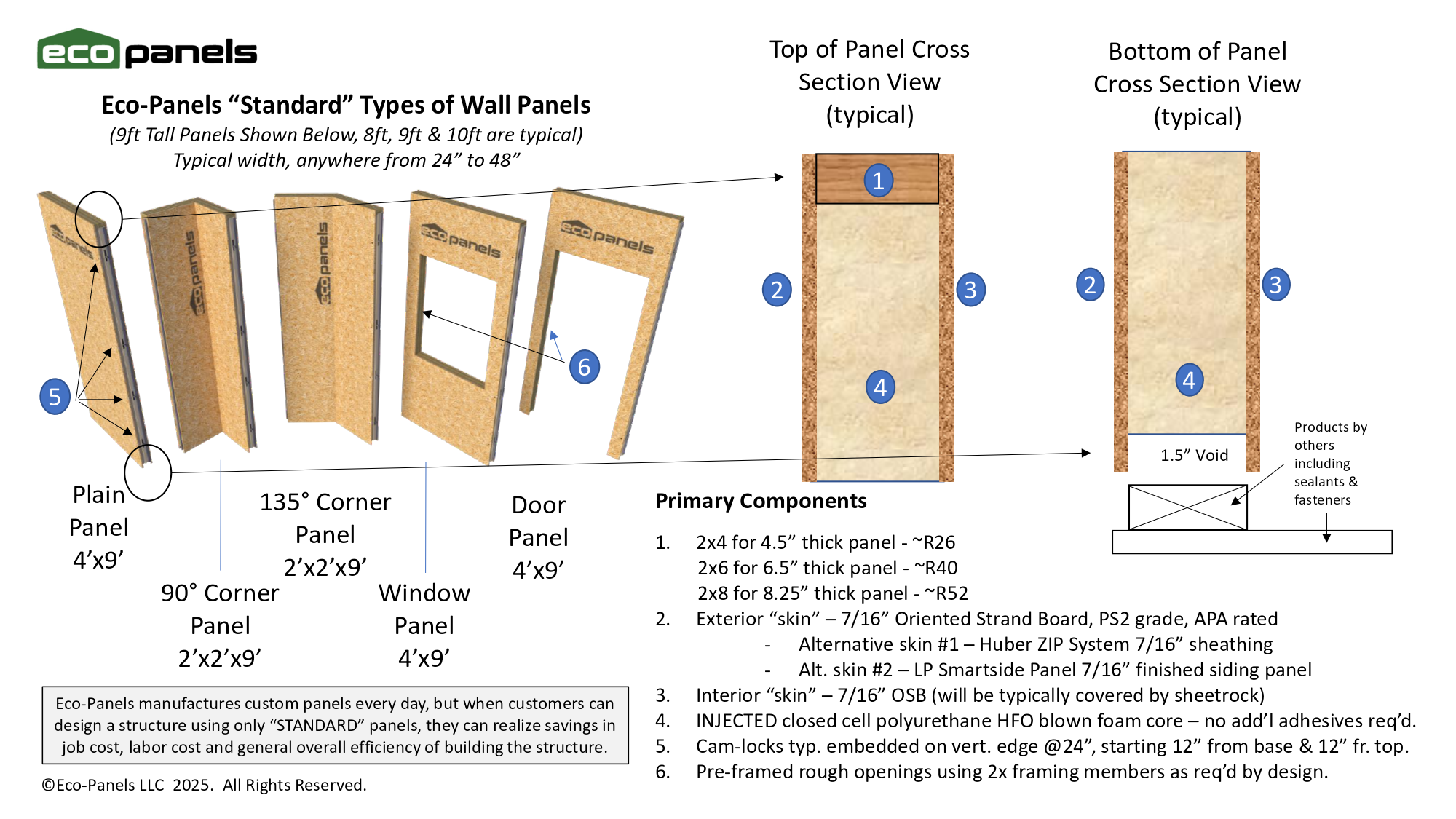

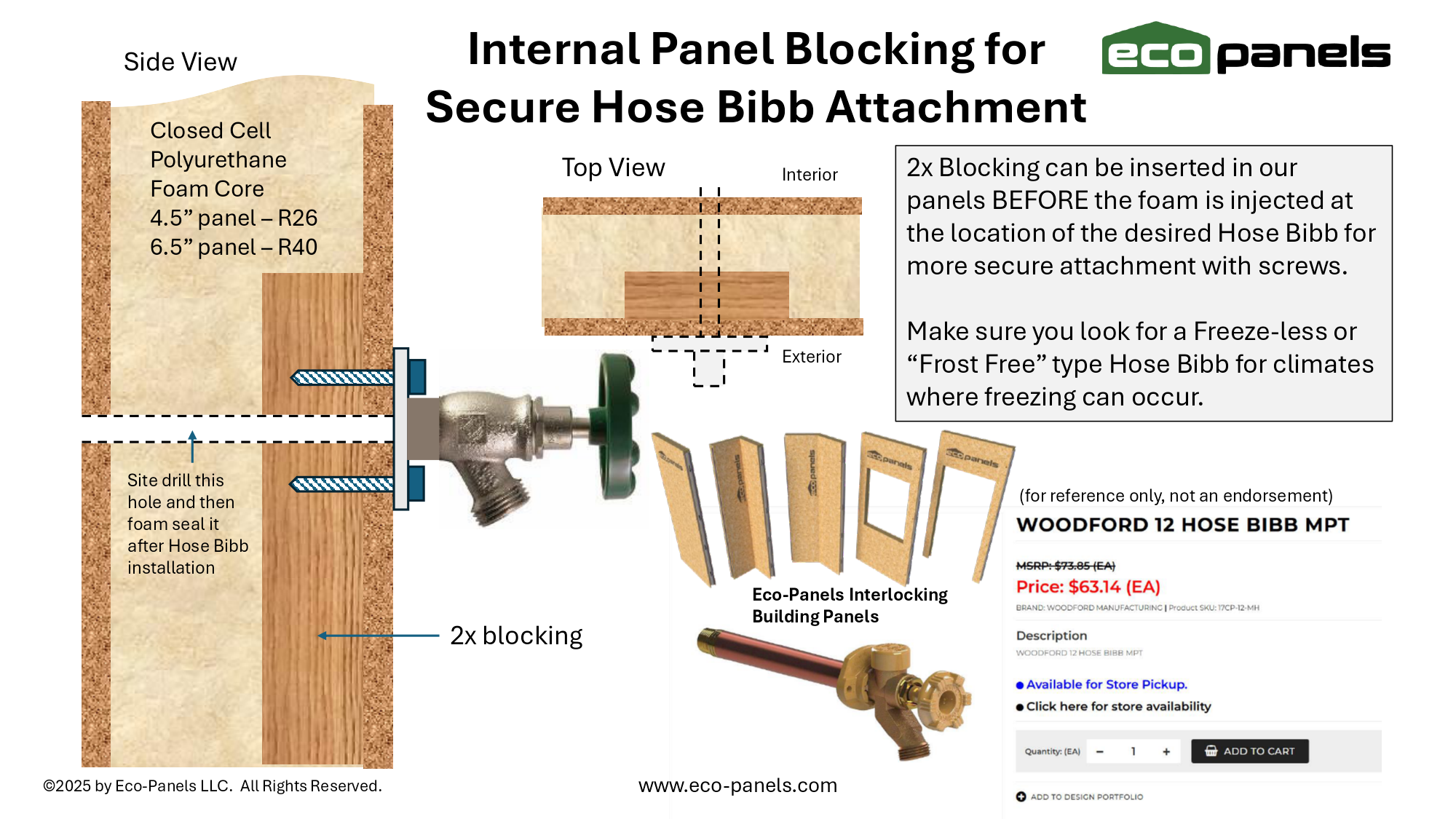

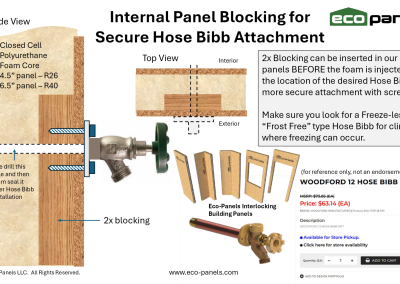

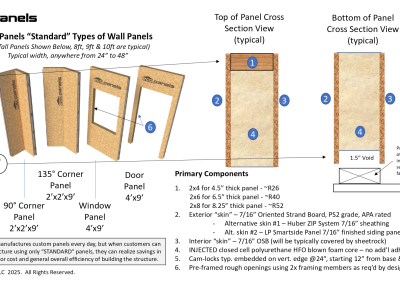

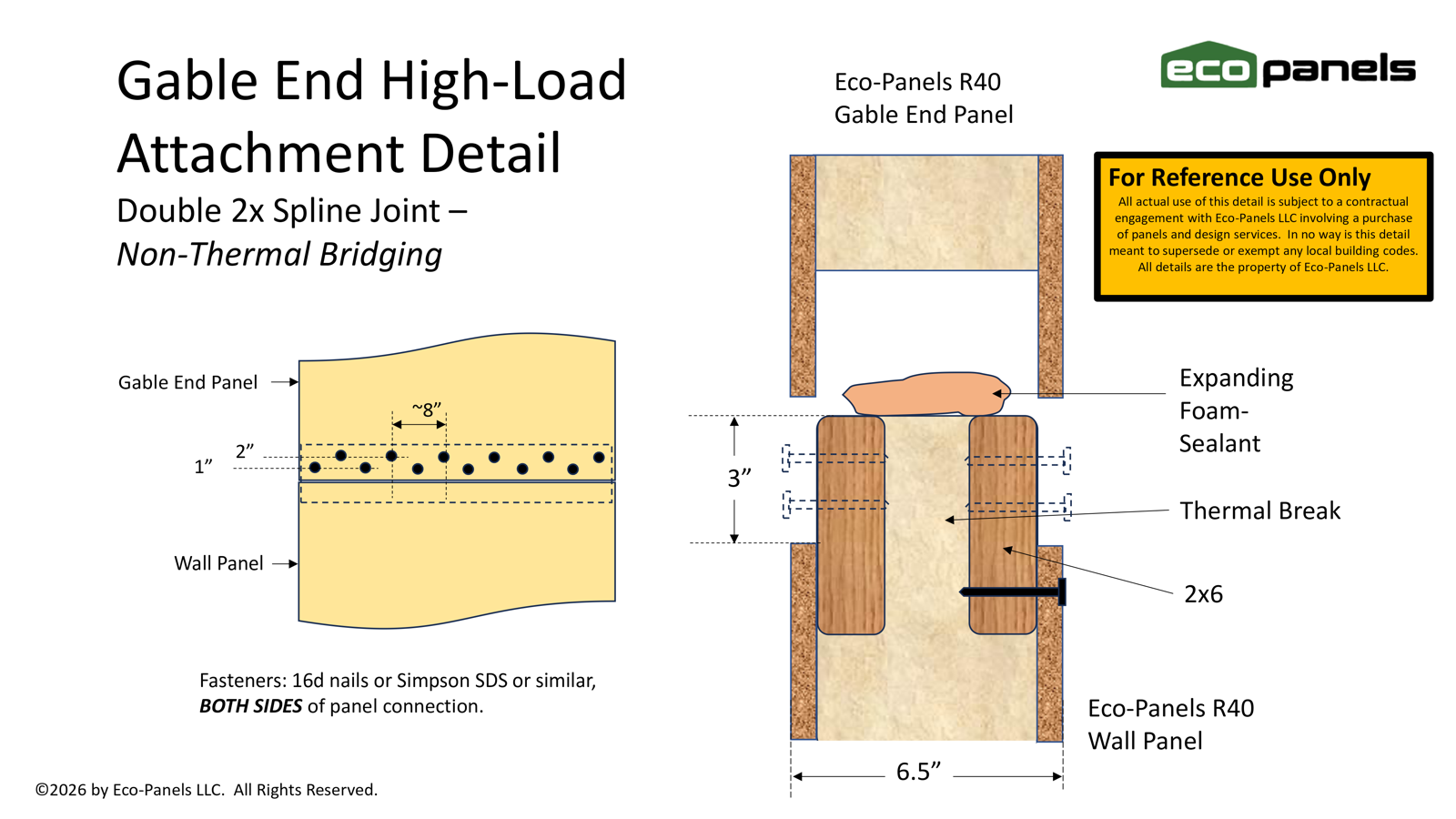

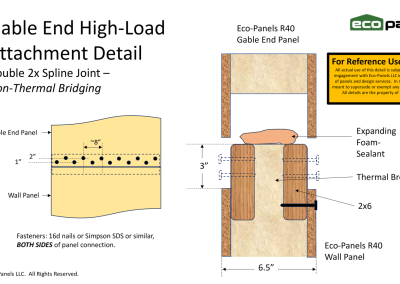

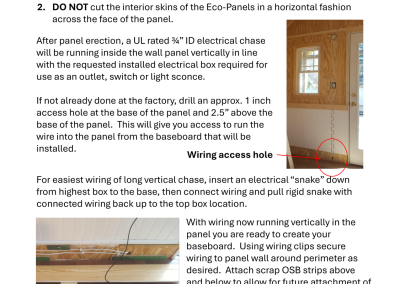

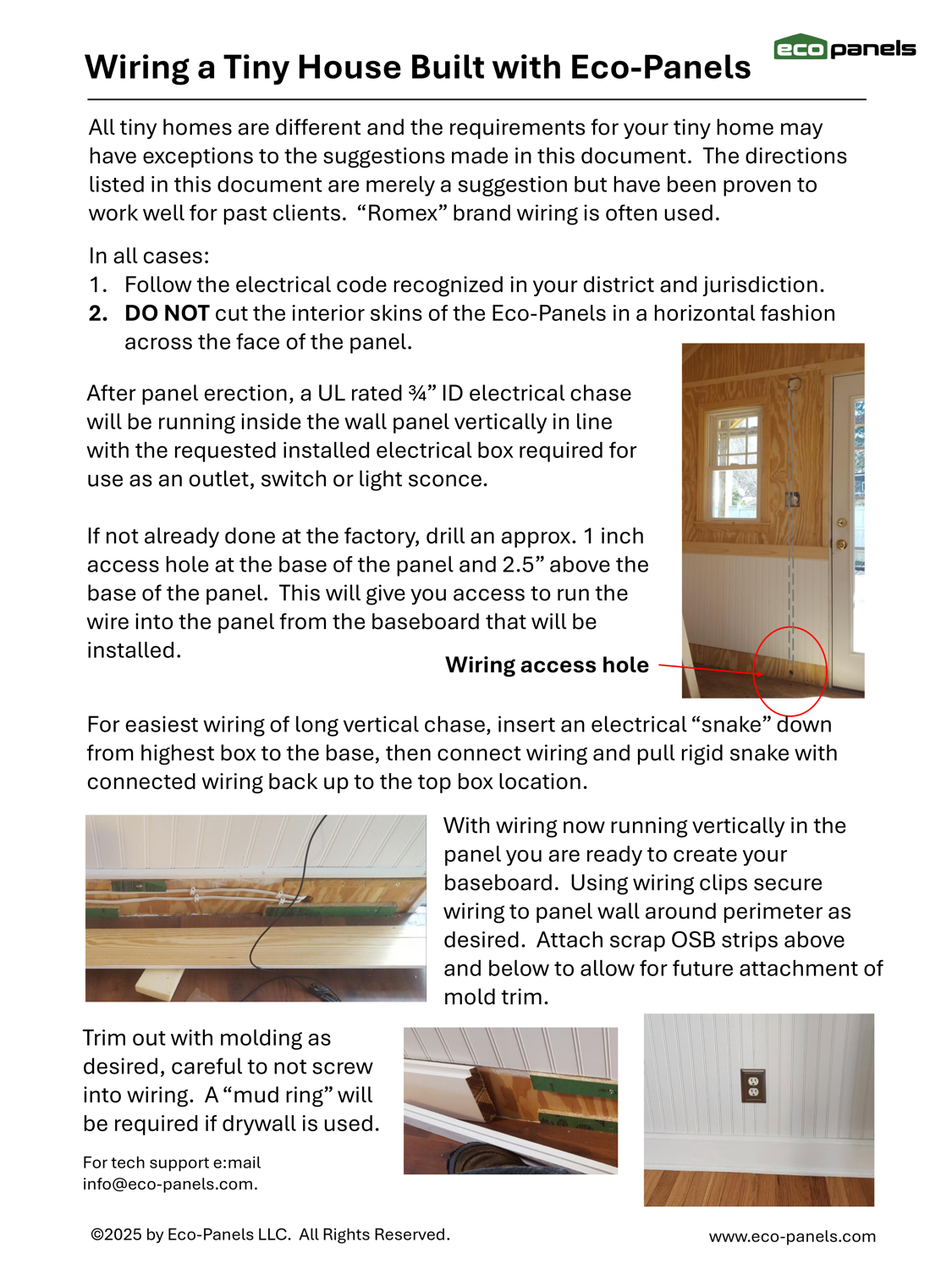

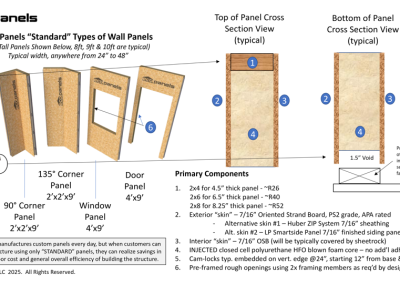

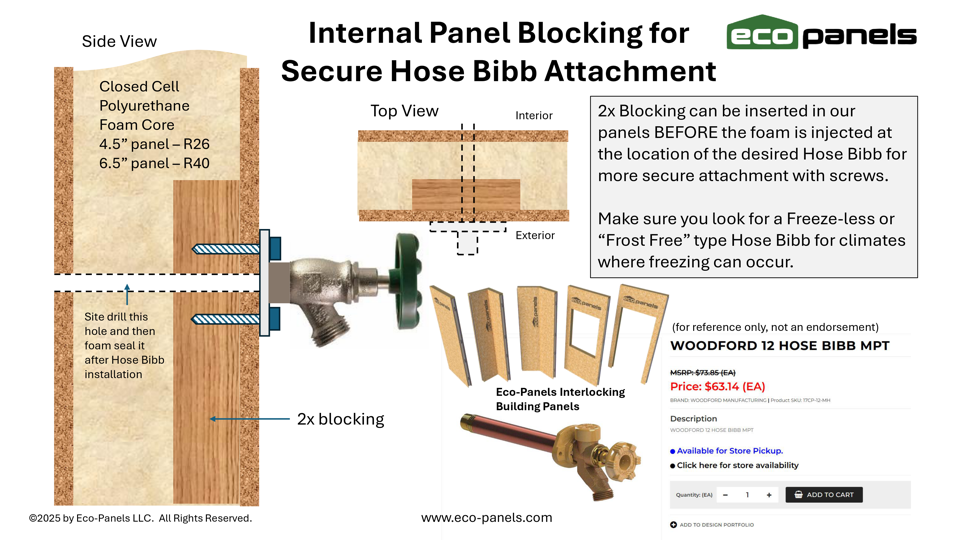

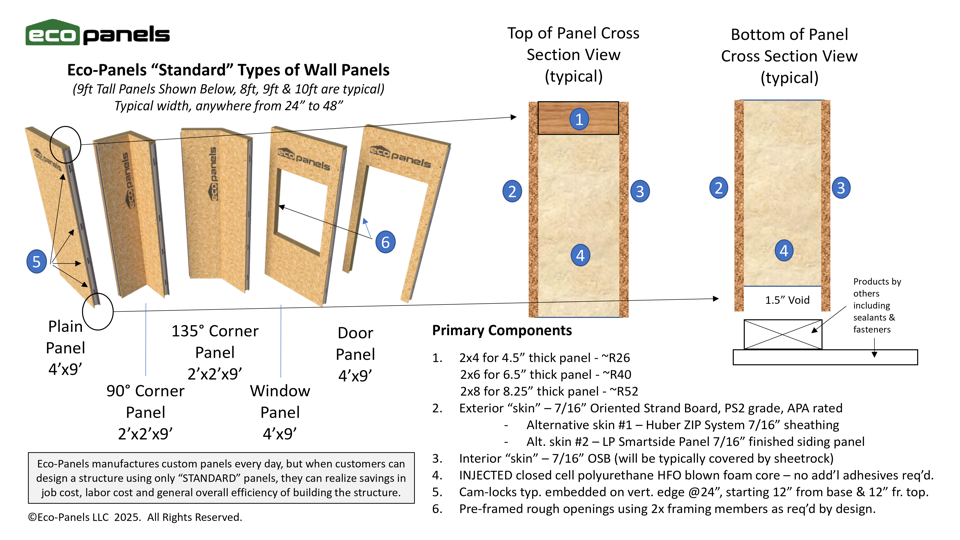

Our “Section Details Gallery” shows the construction details necessary to build a building with Eco-Panels. Note that not all details will apply to your situation.

A collection of the Best Practices for designing with Eco-Panel wall and roof panels.

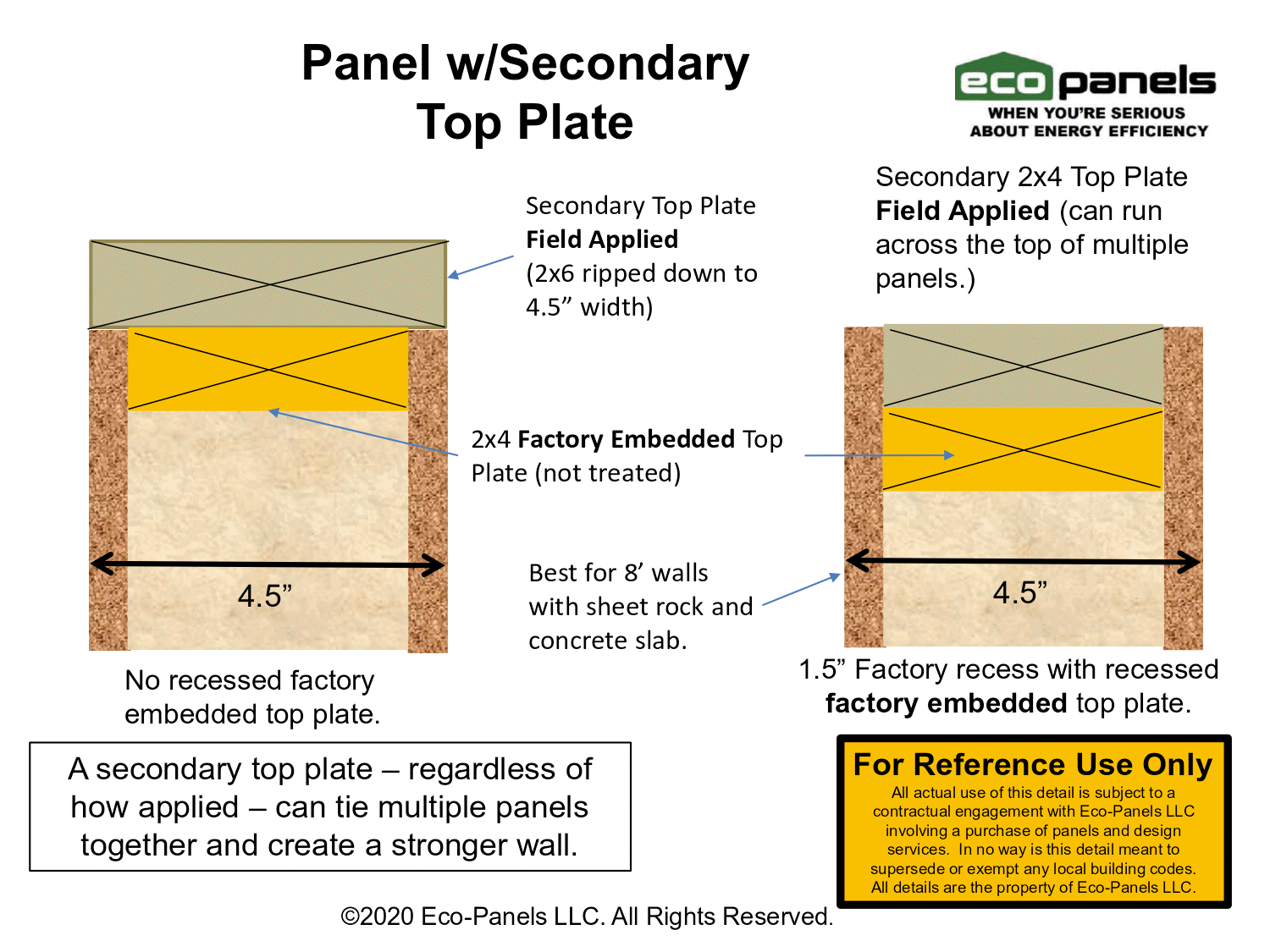

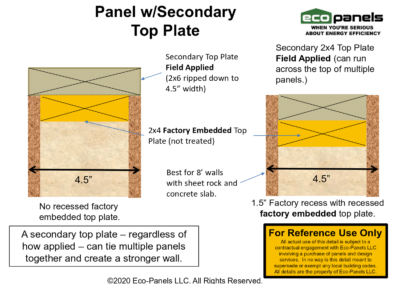

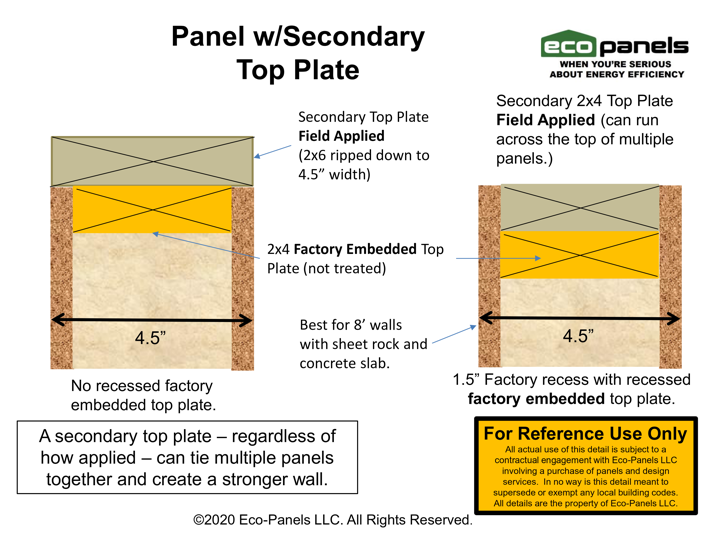

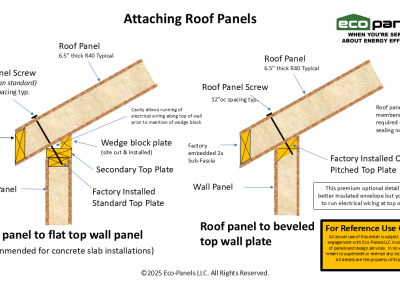

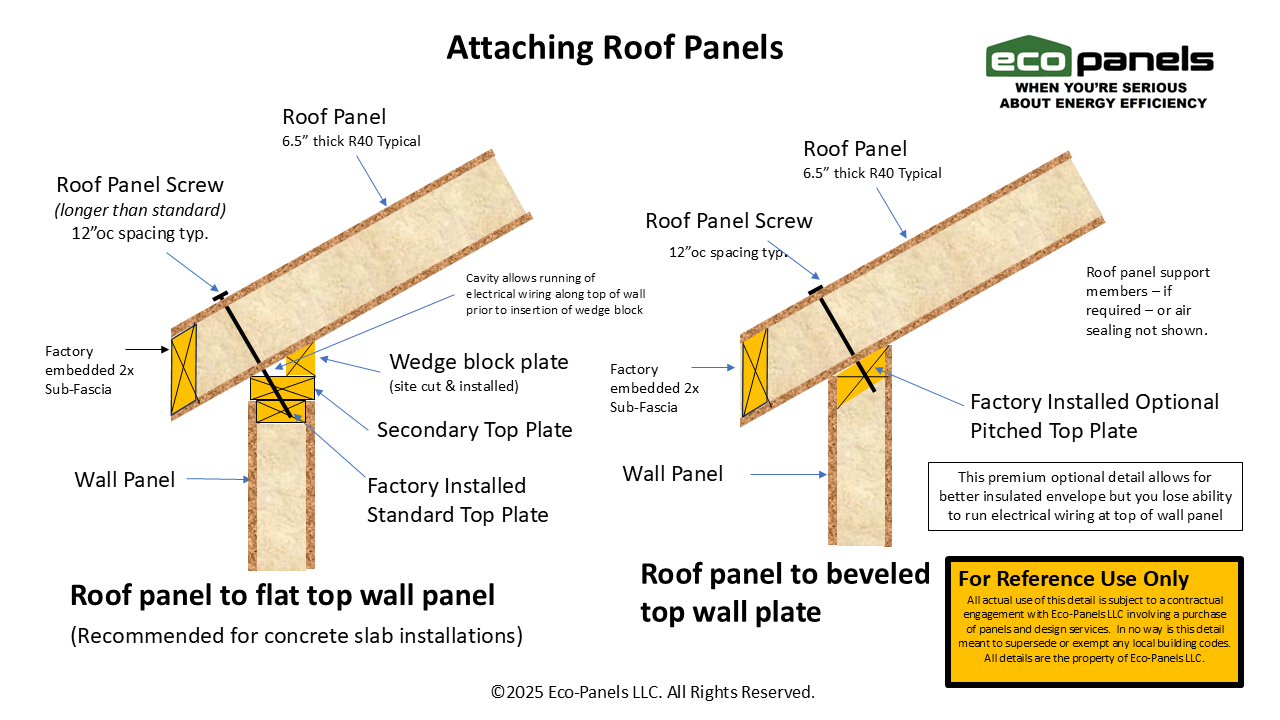

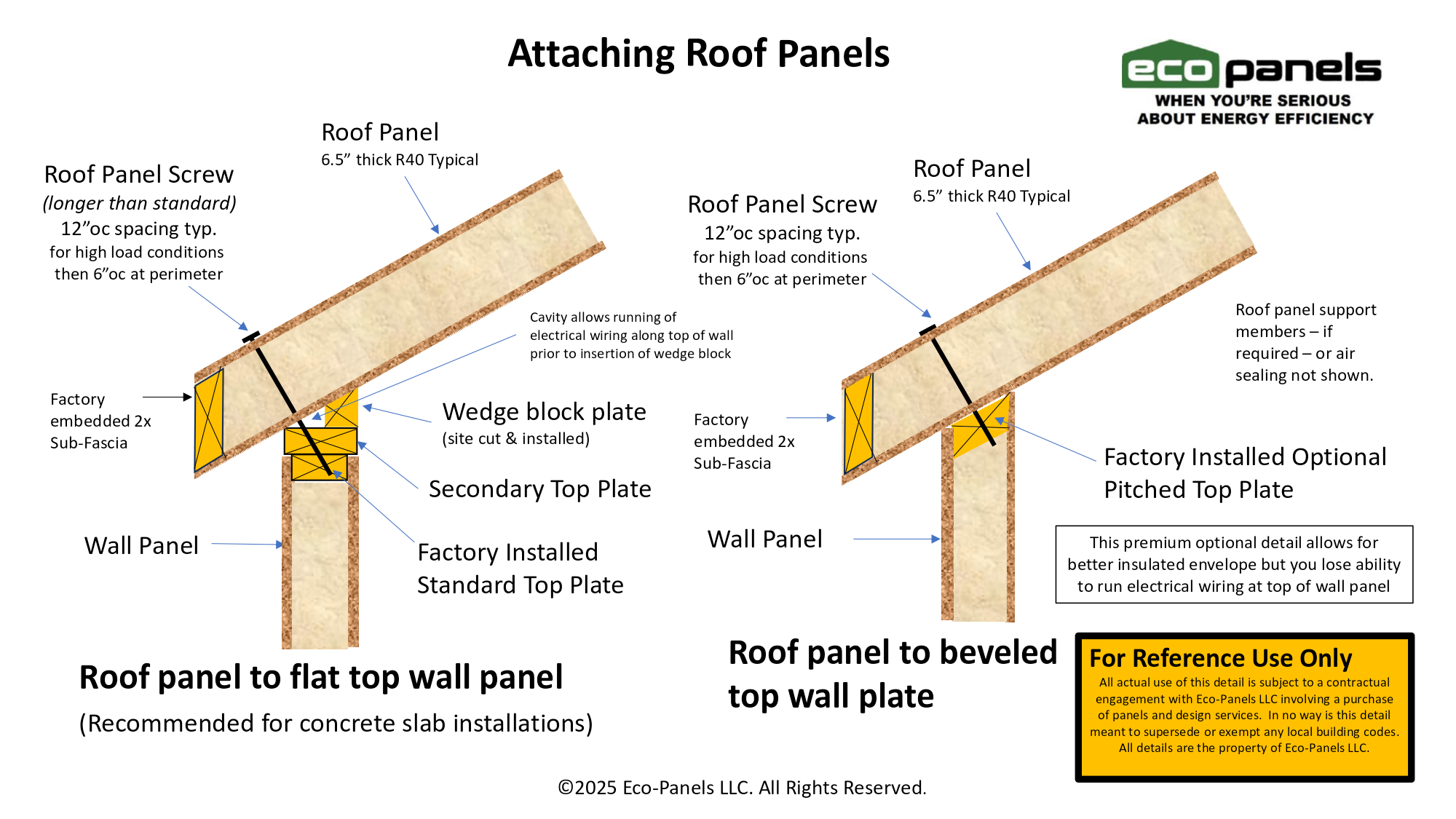

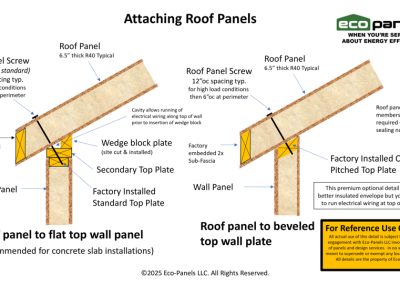

4.5in Panel showing Secondary Top Plate two types

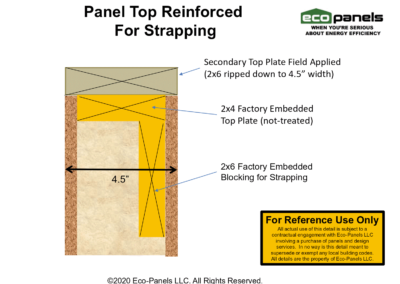

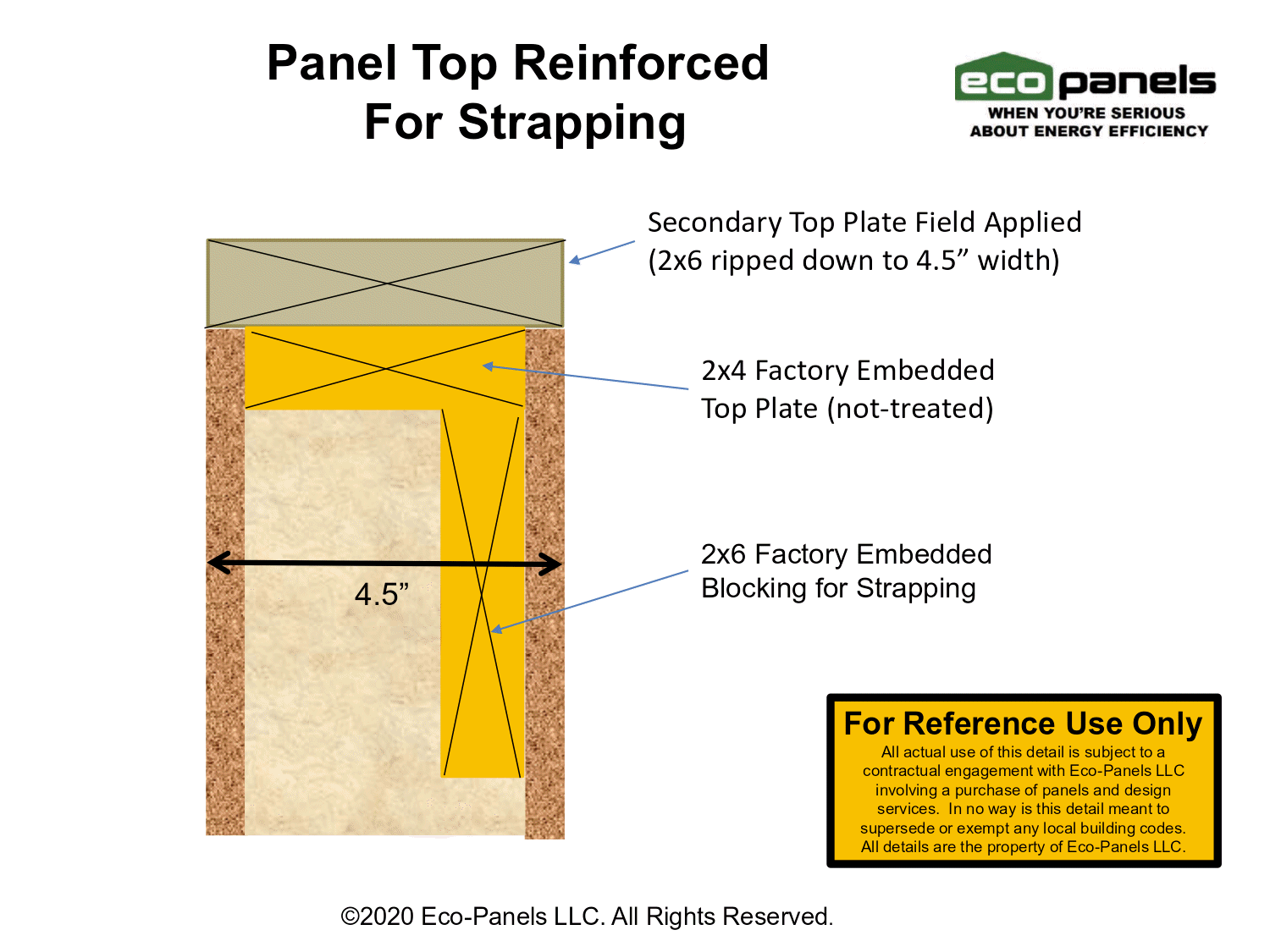

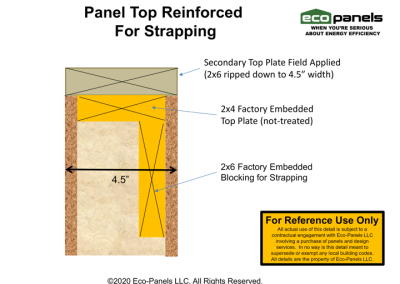

4.5in Panel showing Secondary Top Plate with embedded blocking for strapping

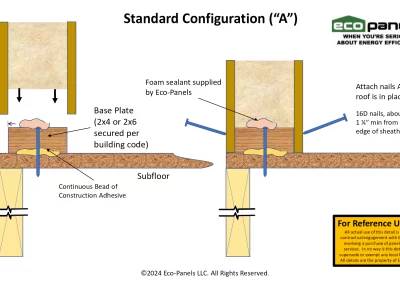

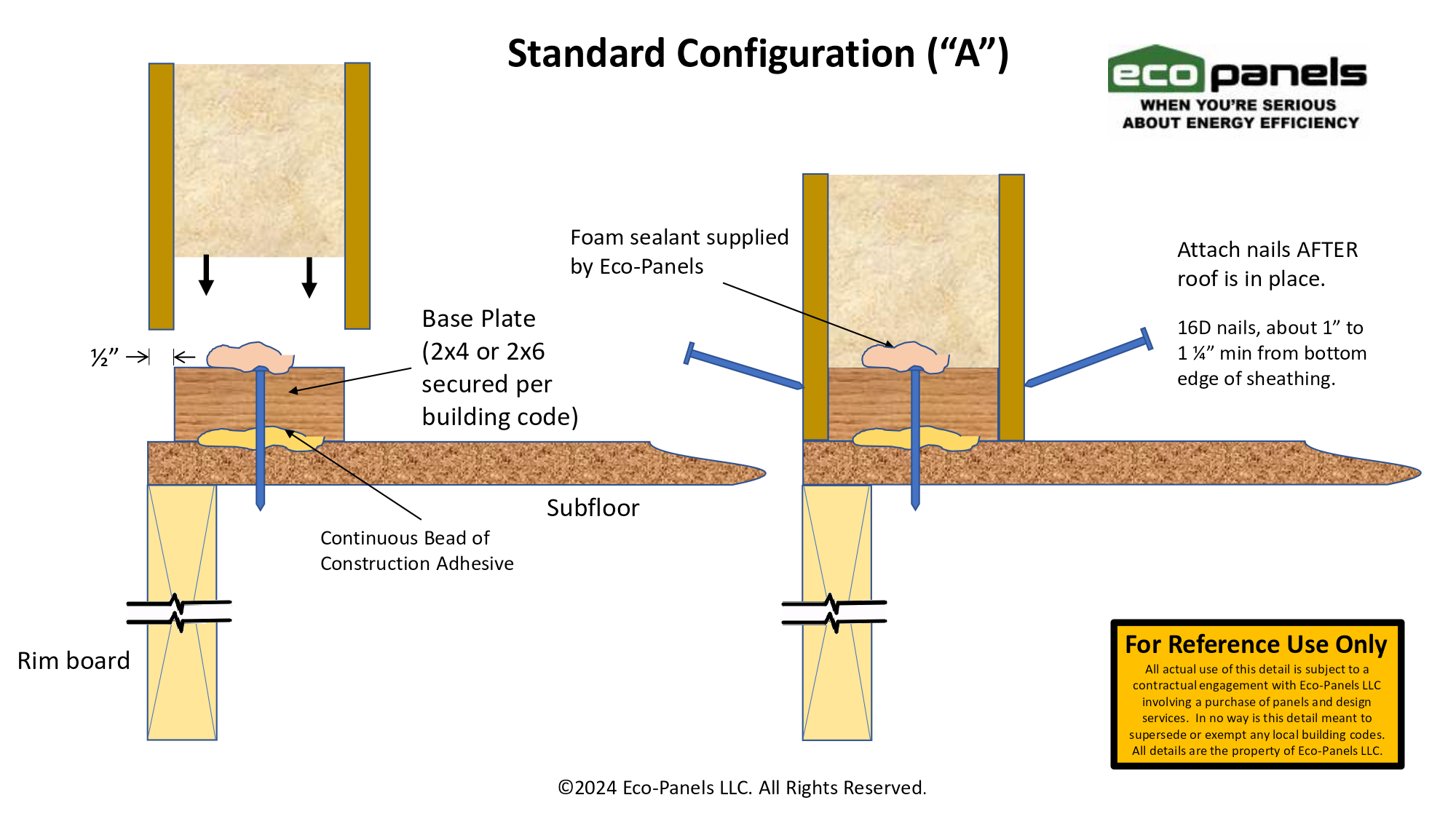

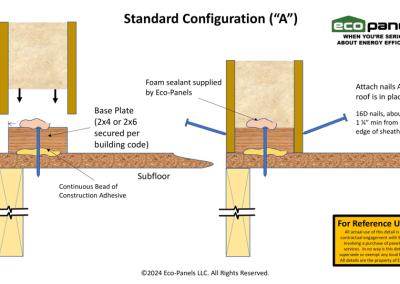

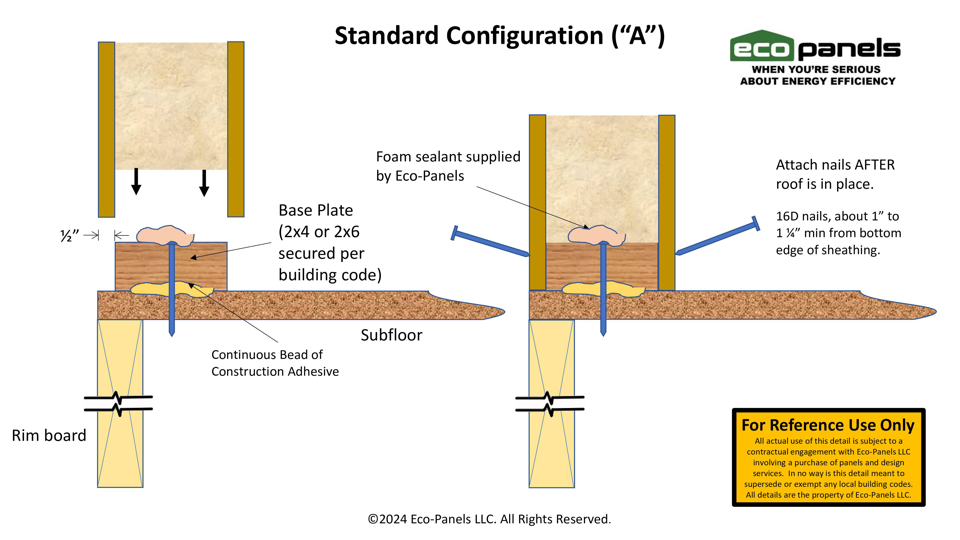

Setting Panels on Baseplate

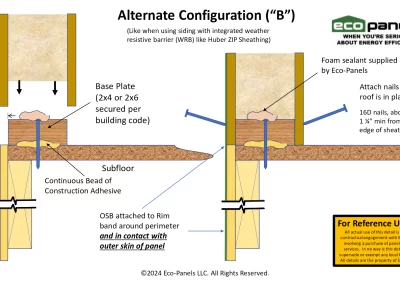

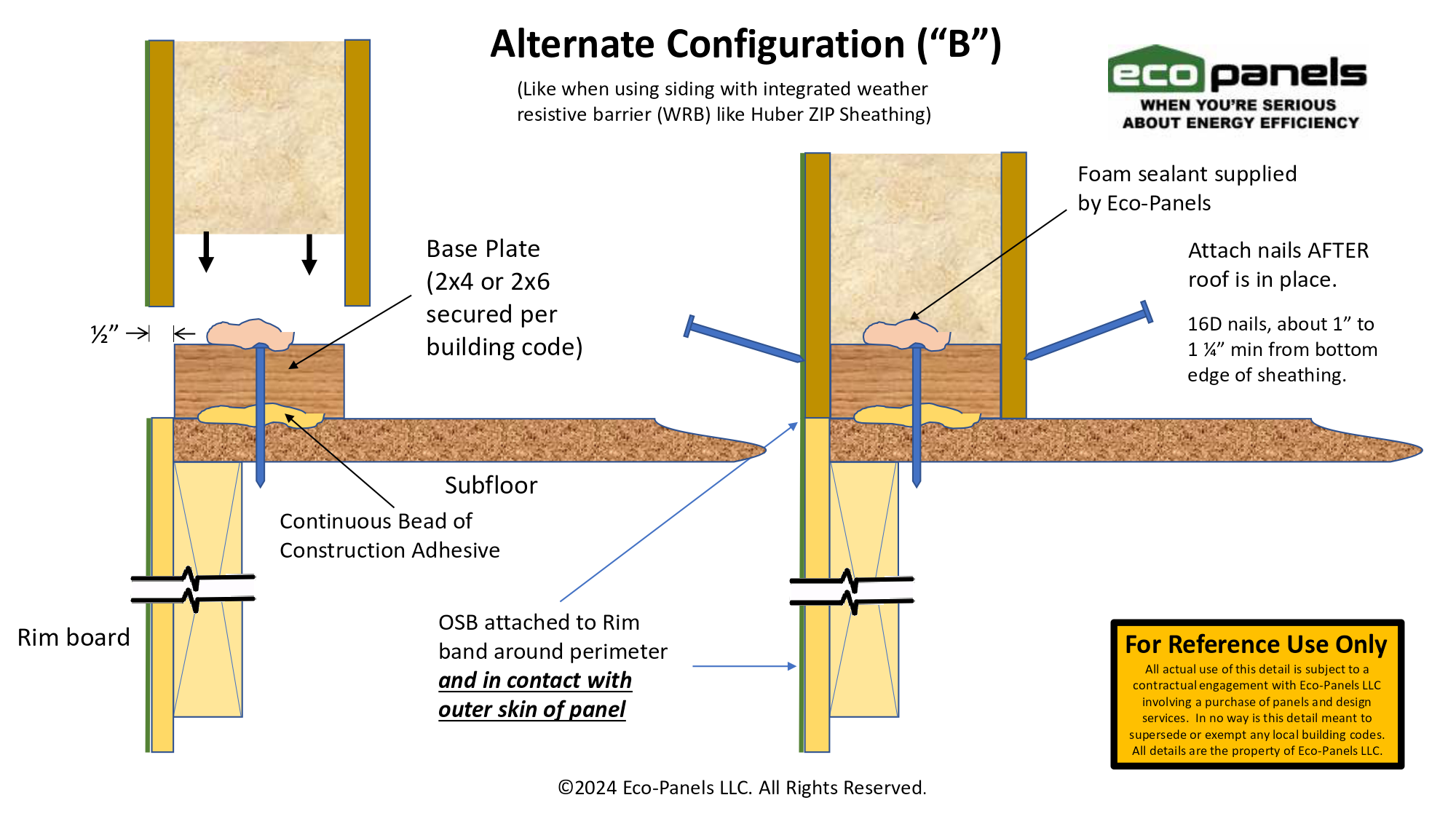

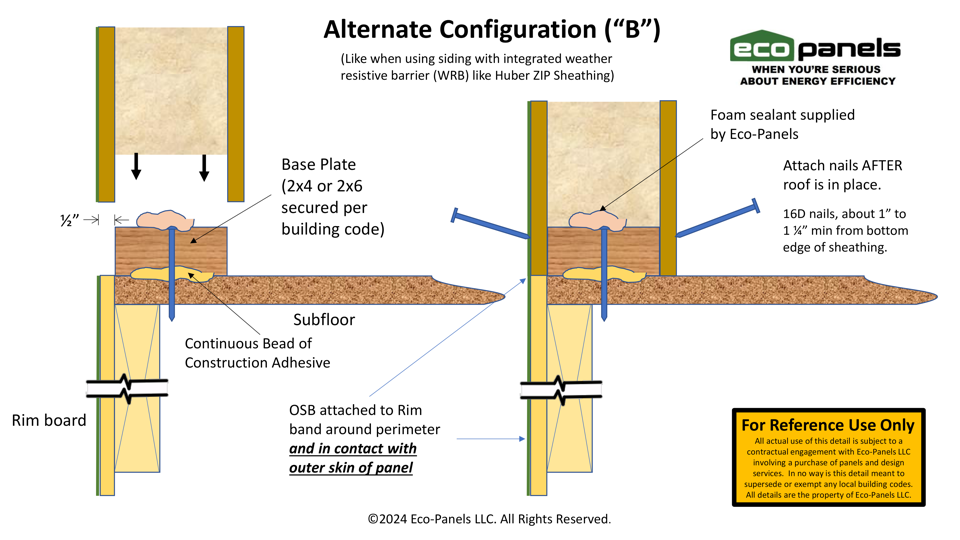

Setting Panels on Baseplate When Using Weather Resistive Barrier

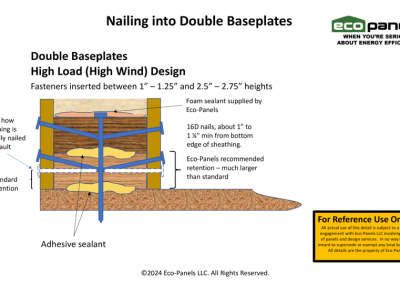

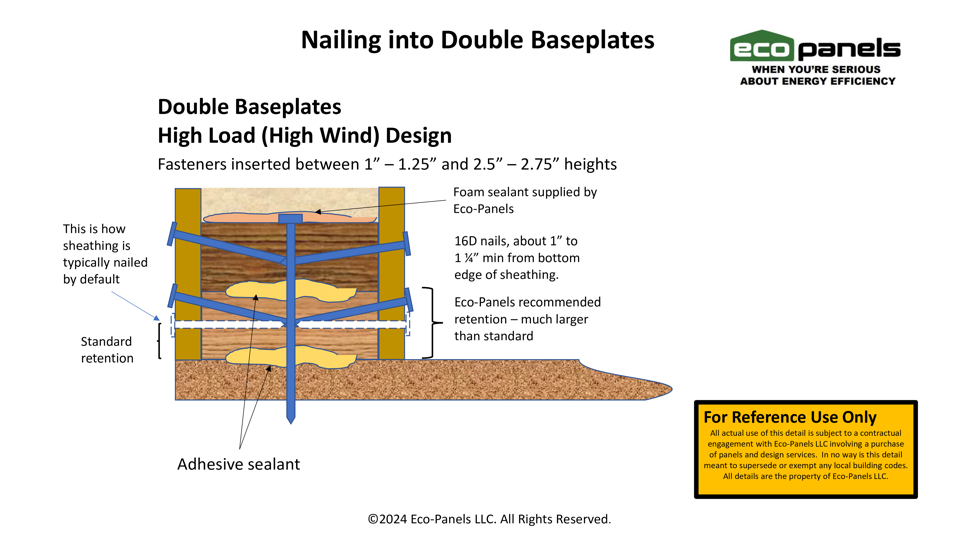

Nailing Into Double Baseplates

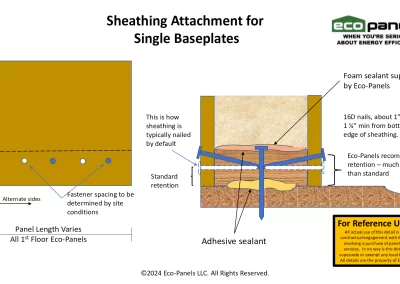

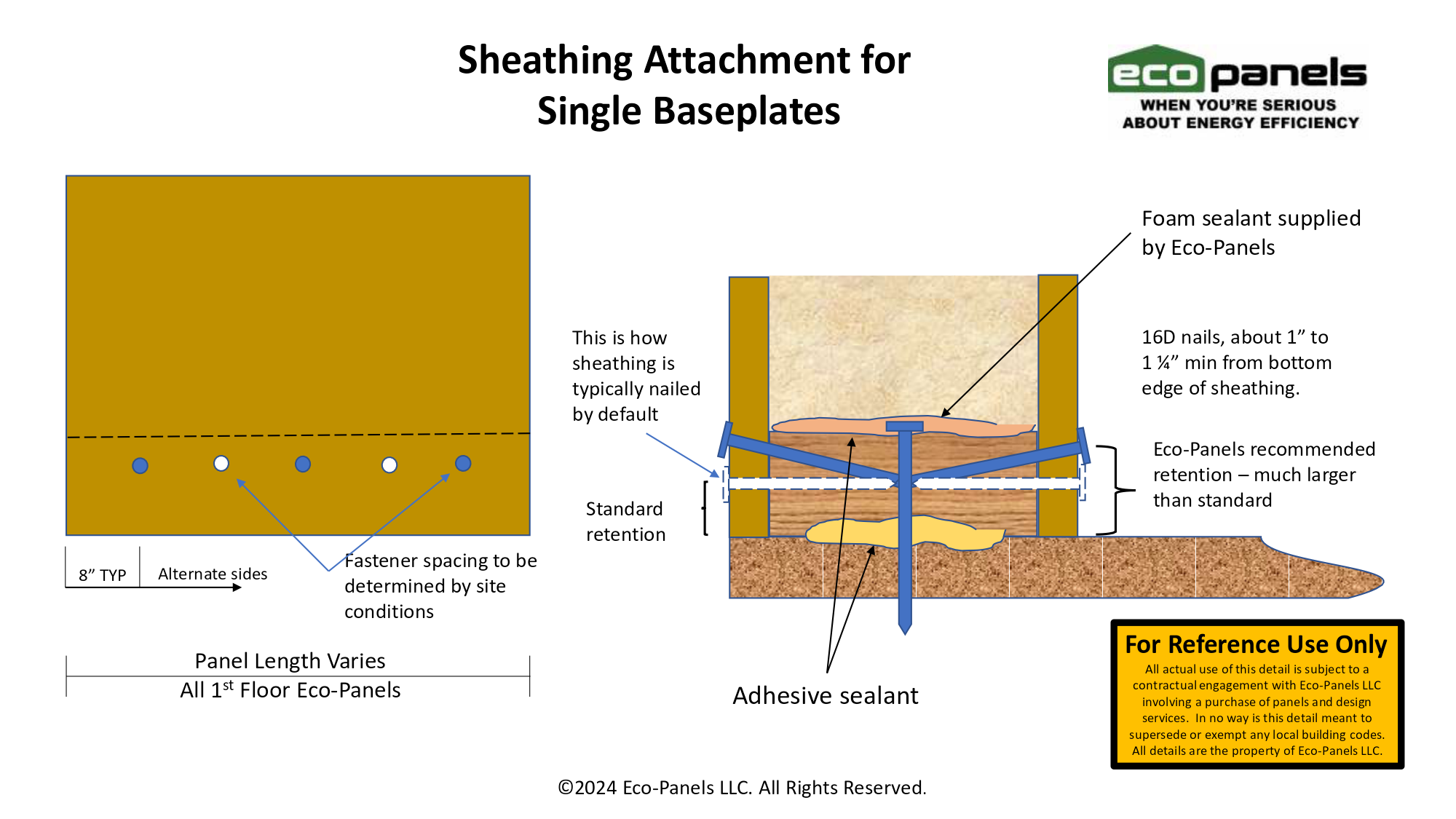

Sheathing Attachment for Single Baseplate

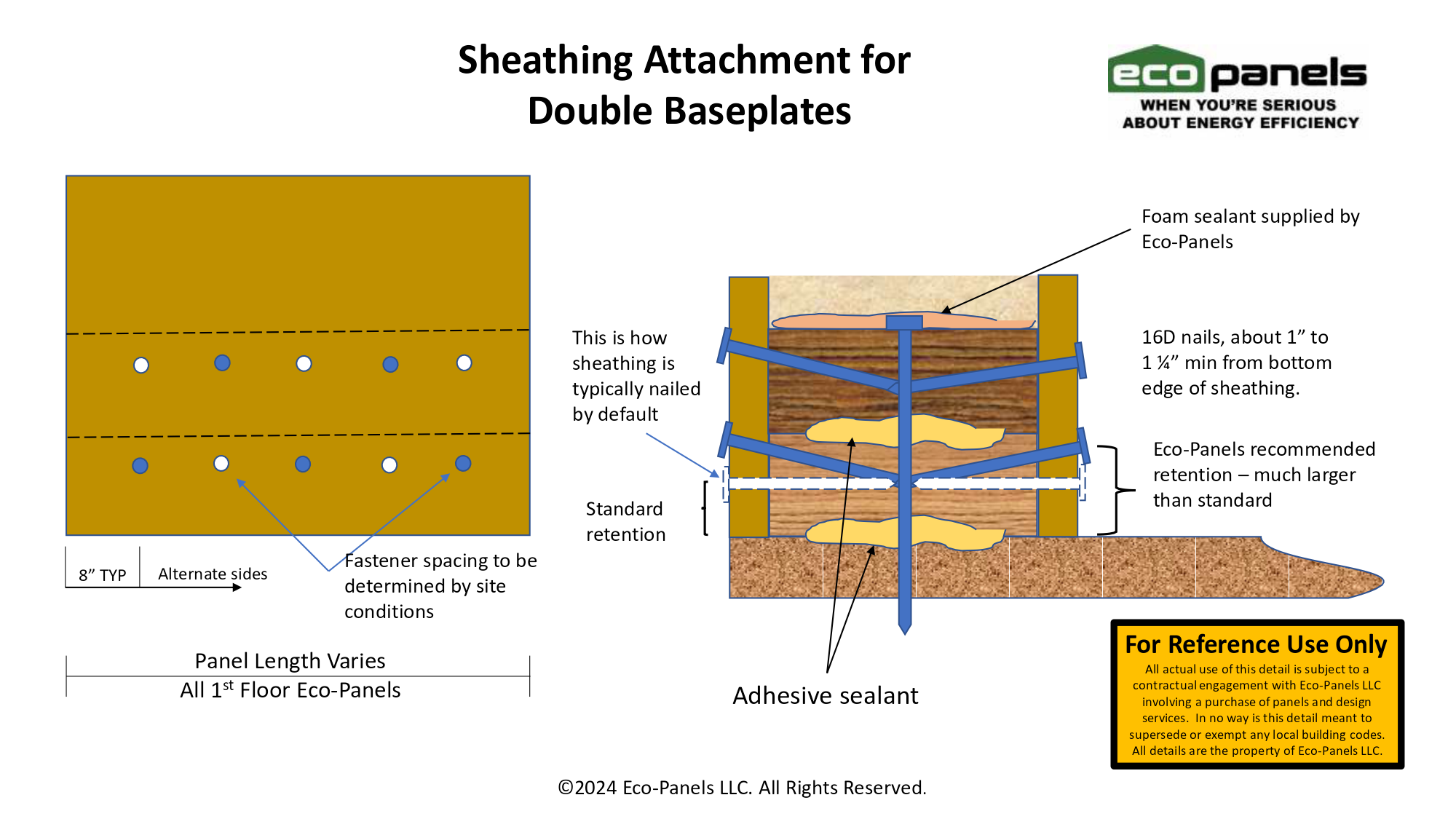

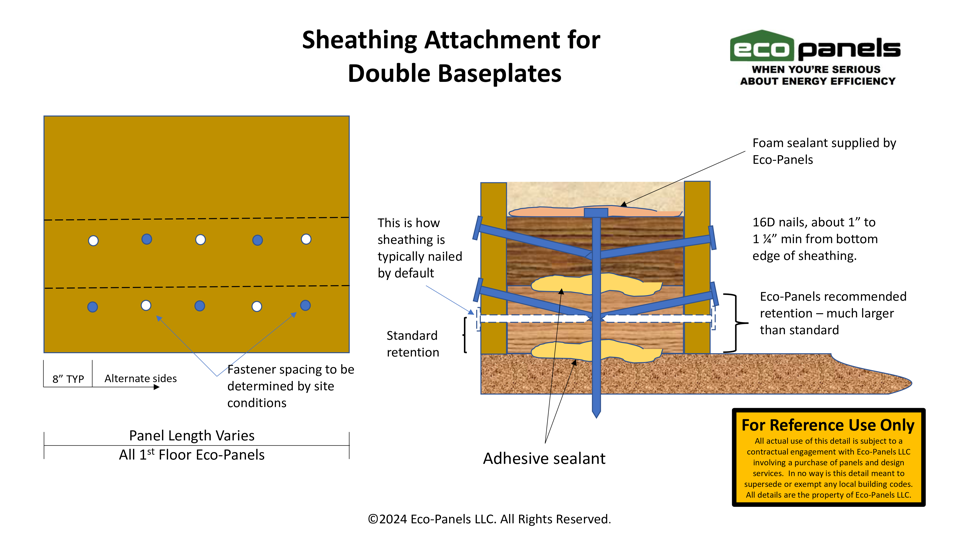

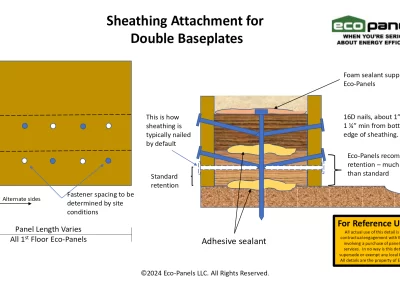

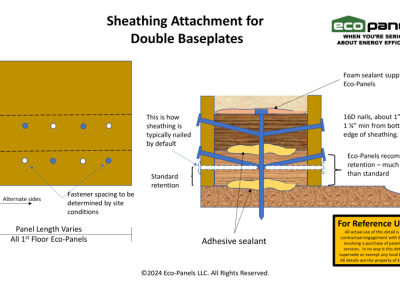

Sheathing Attachment for Double Baseplate

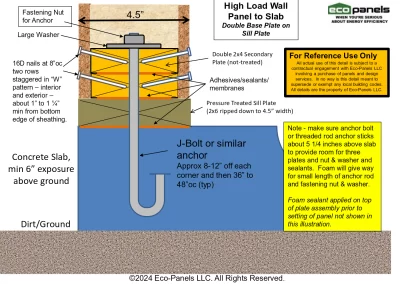

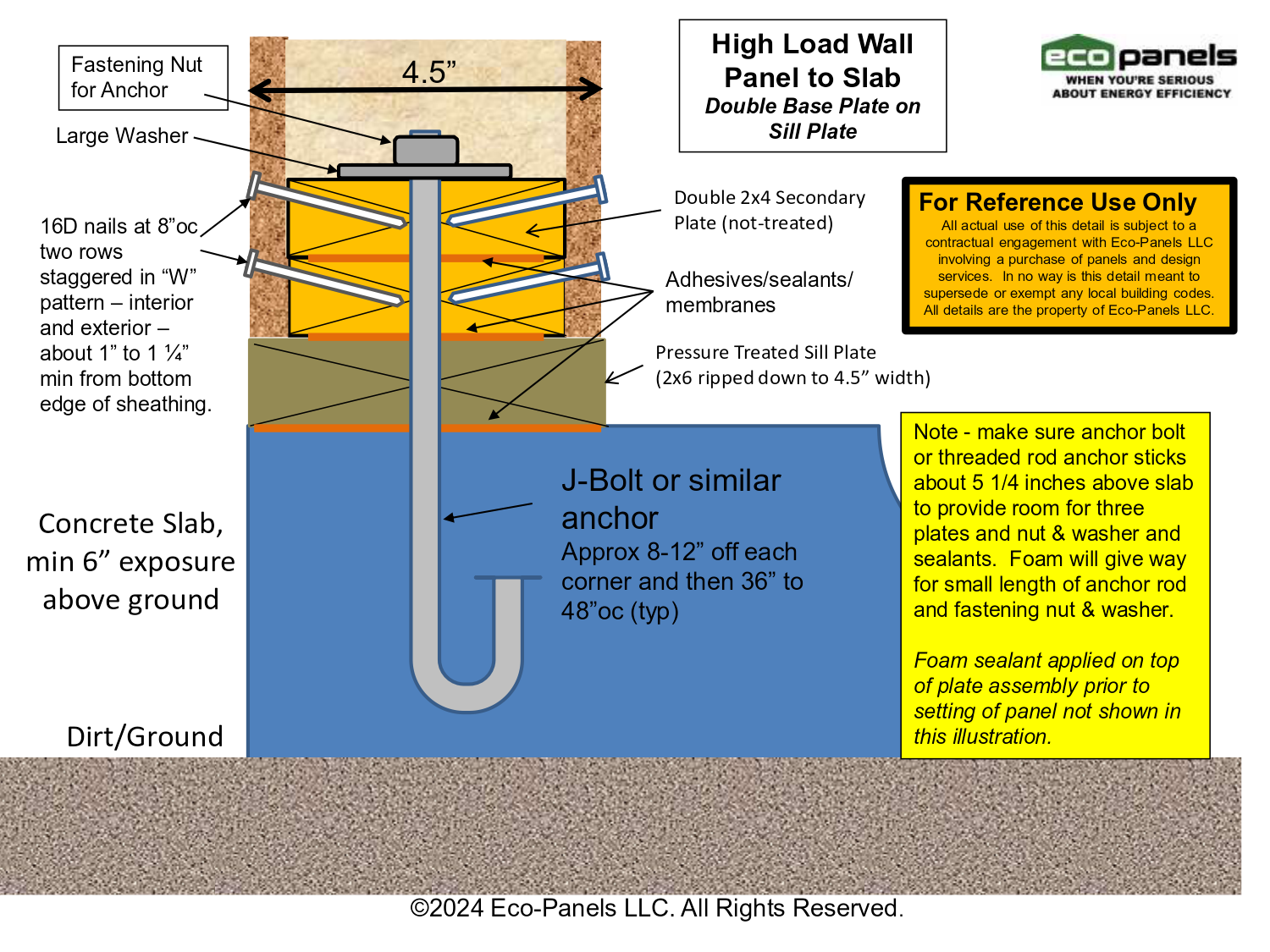

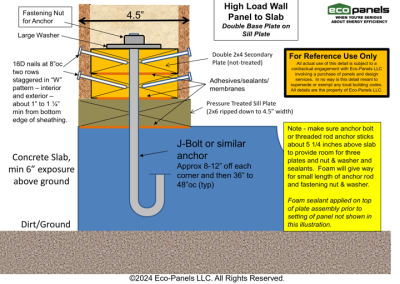

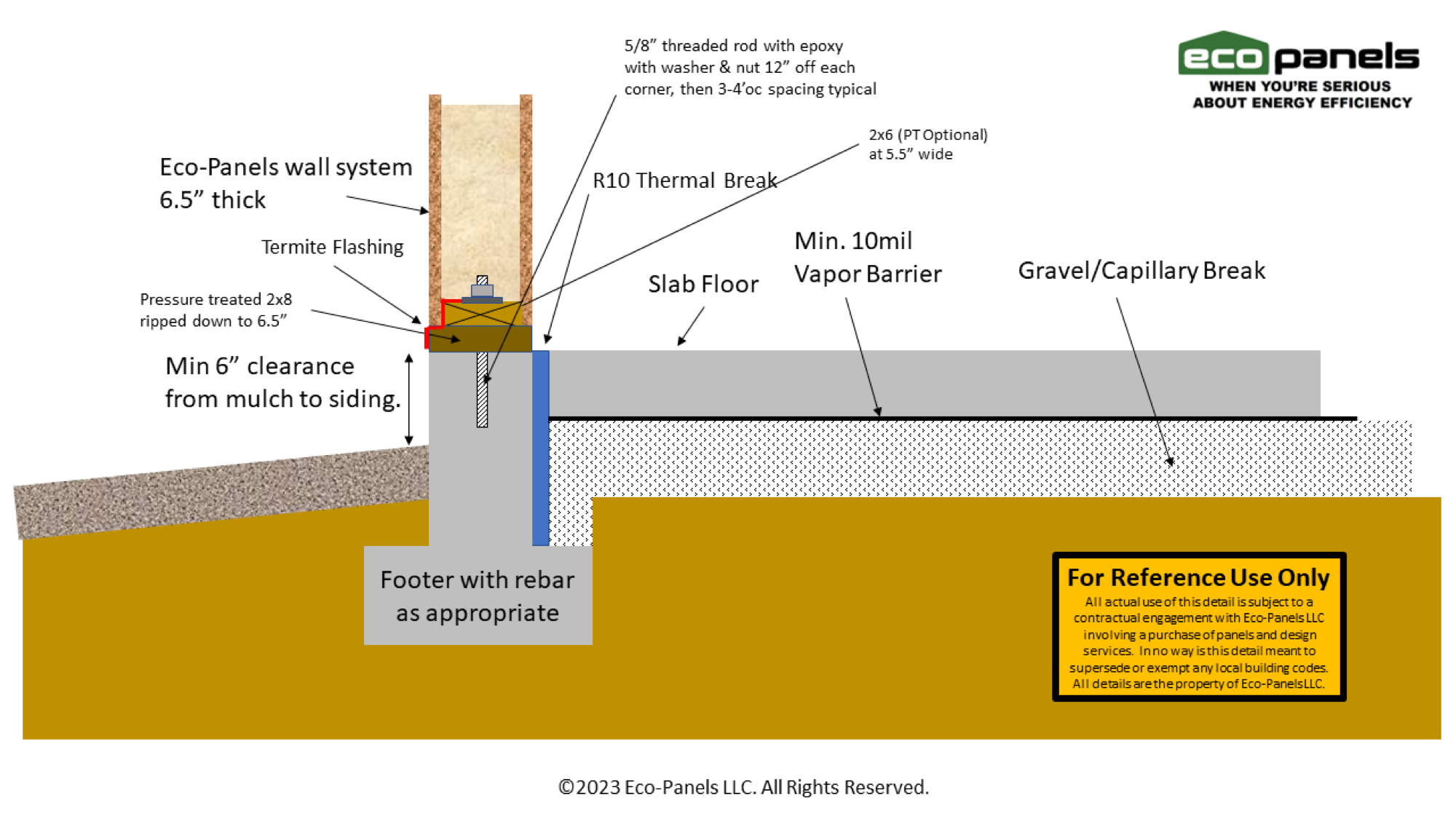

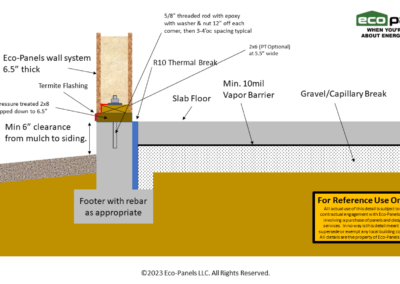

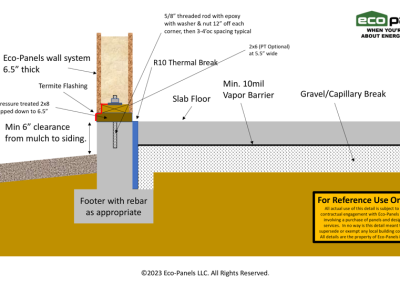

4.5in Panel on Concrete Slab with double base plate

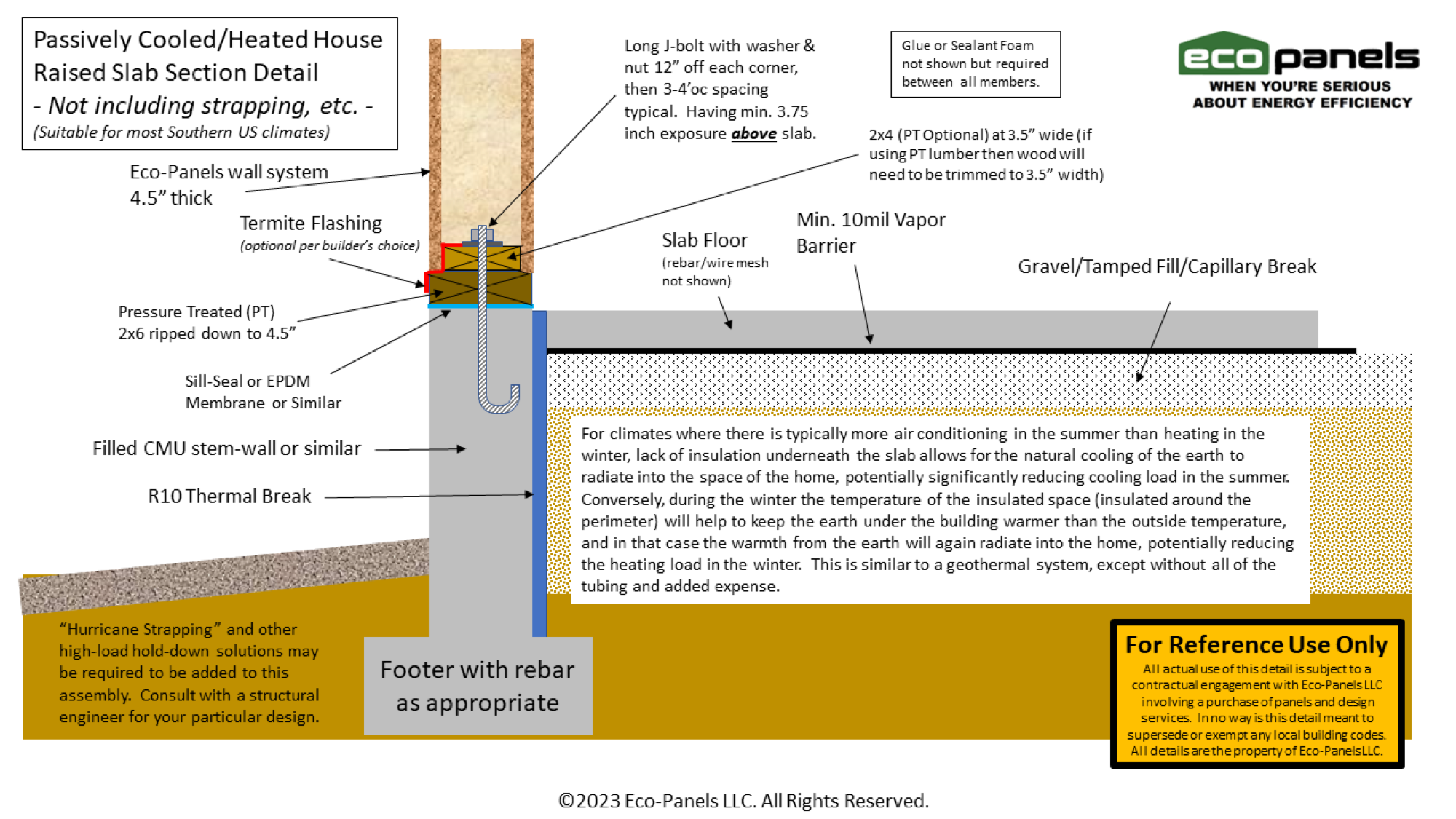

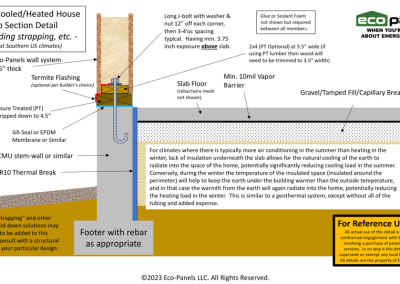

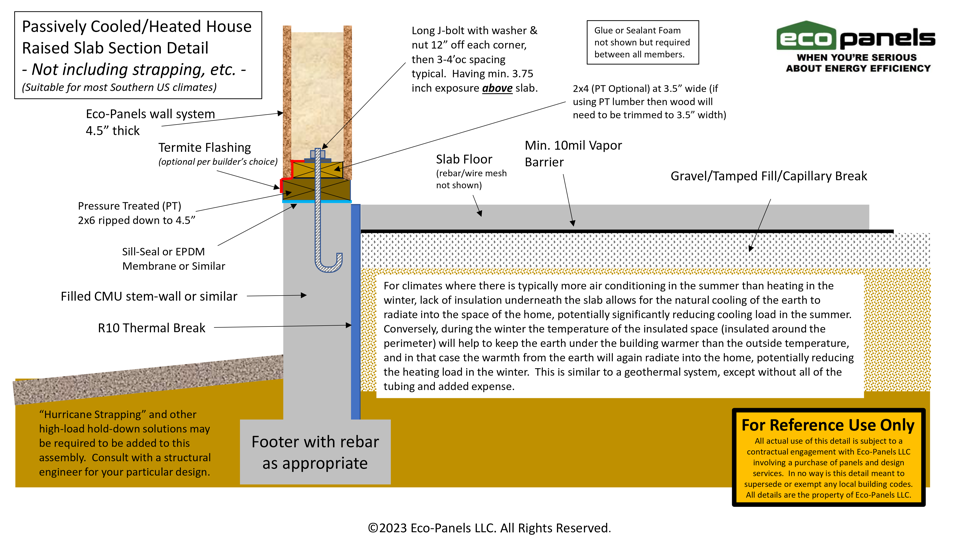

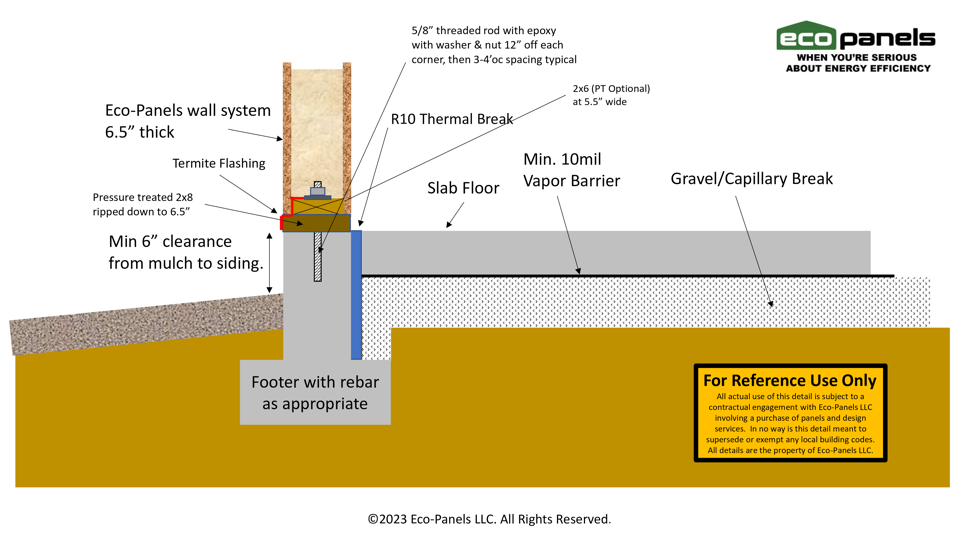

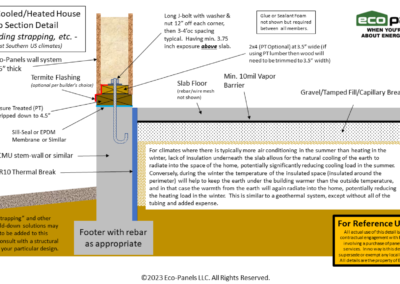

Passively Cooled / Heated House - Raised Slab Section Details

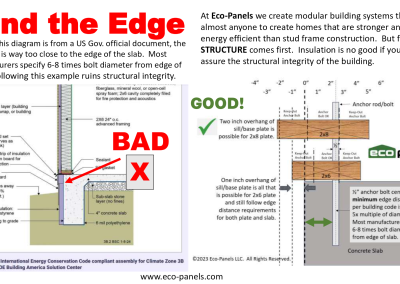

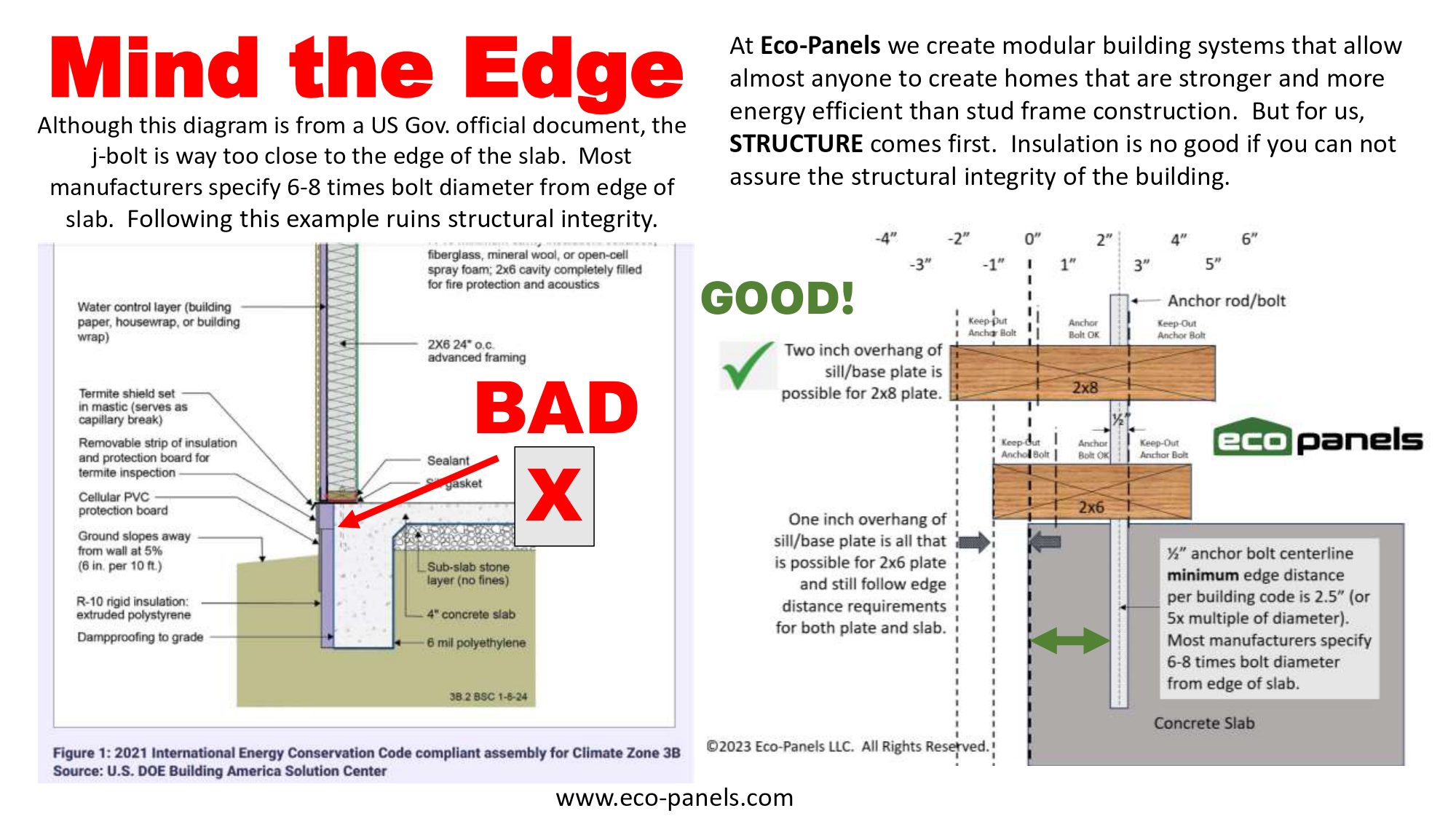

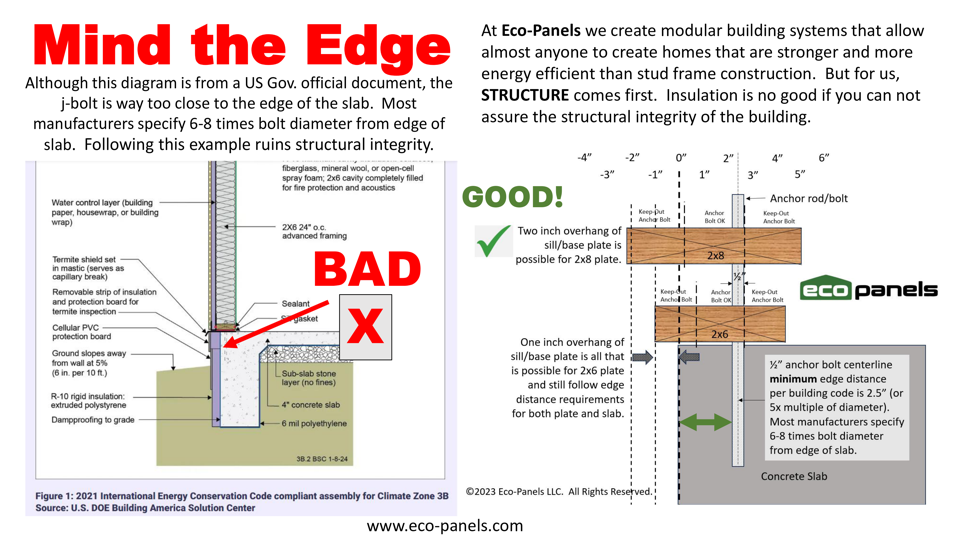

Don't put j-bolts too close to the edge of the foundation slab or wind stresses may cause the foundation to crack. Manufacturers specify 6-8 times bolt diameter from edge of slab.

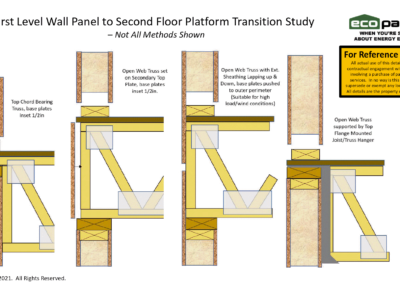

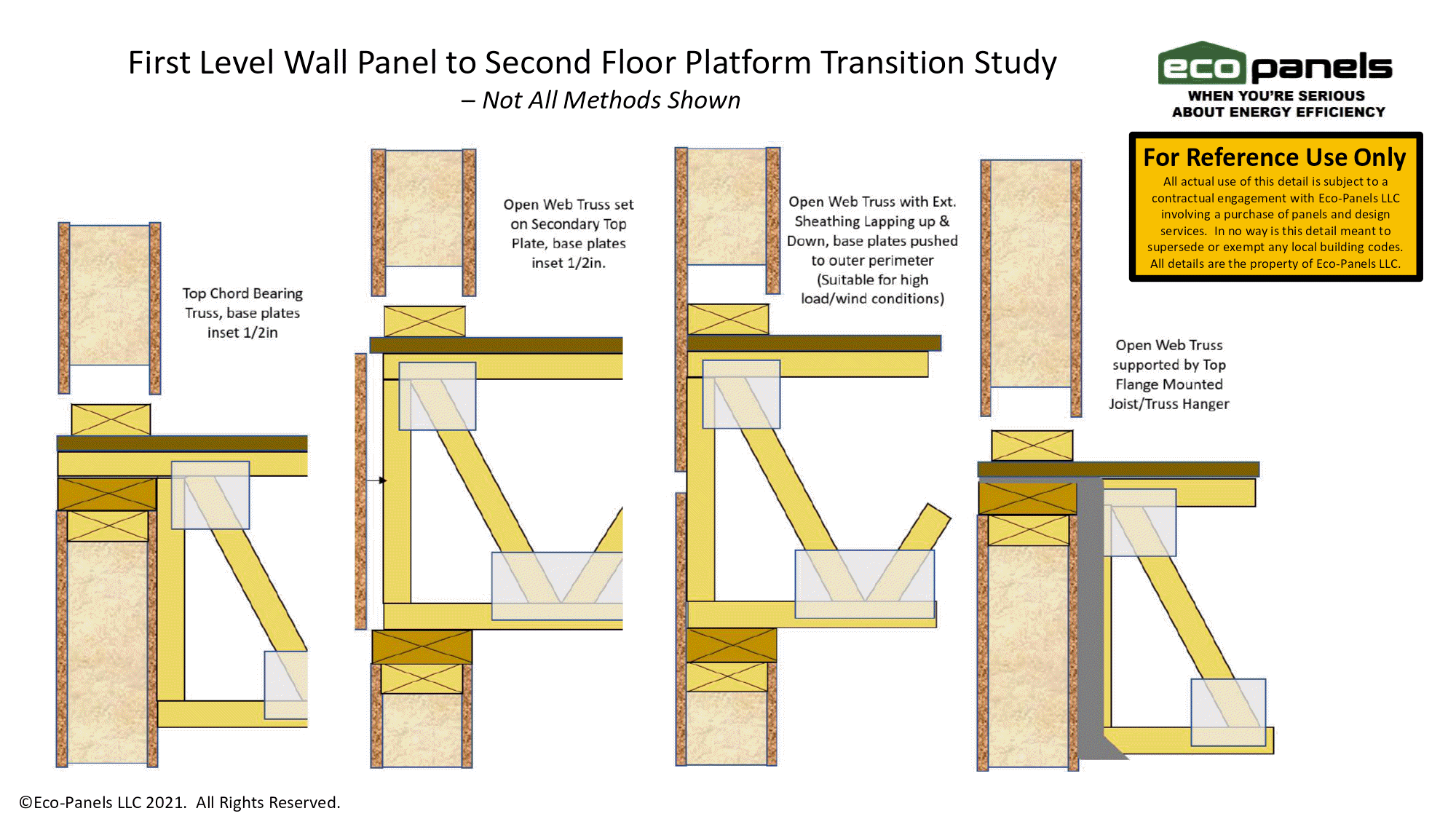

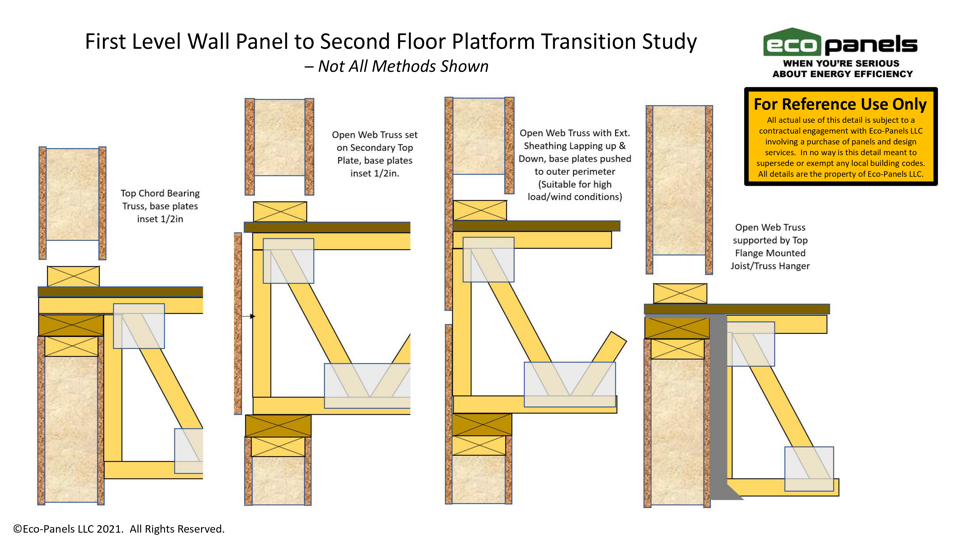

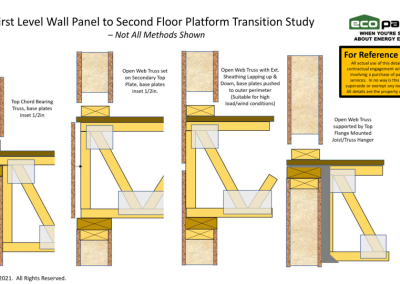

First Floor Wall Panel to Second Floor Platform Transition Study

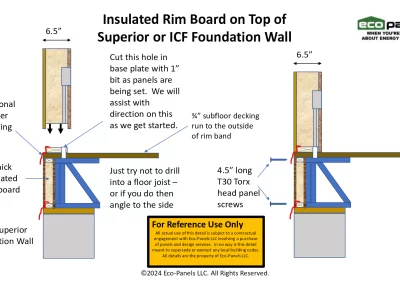

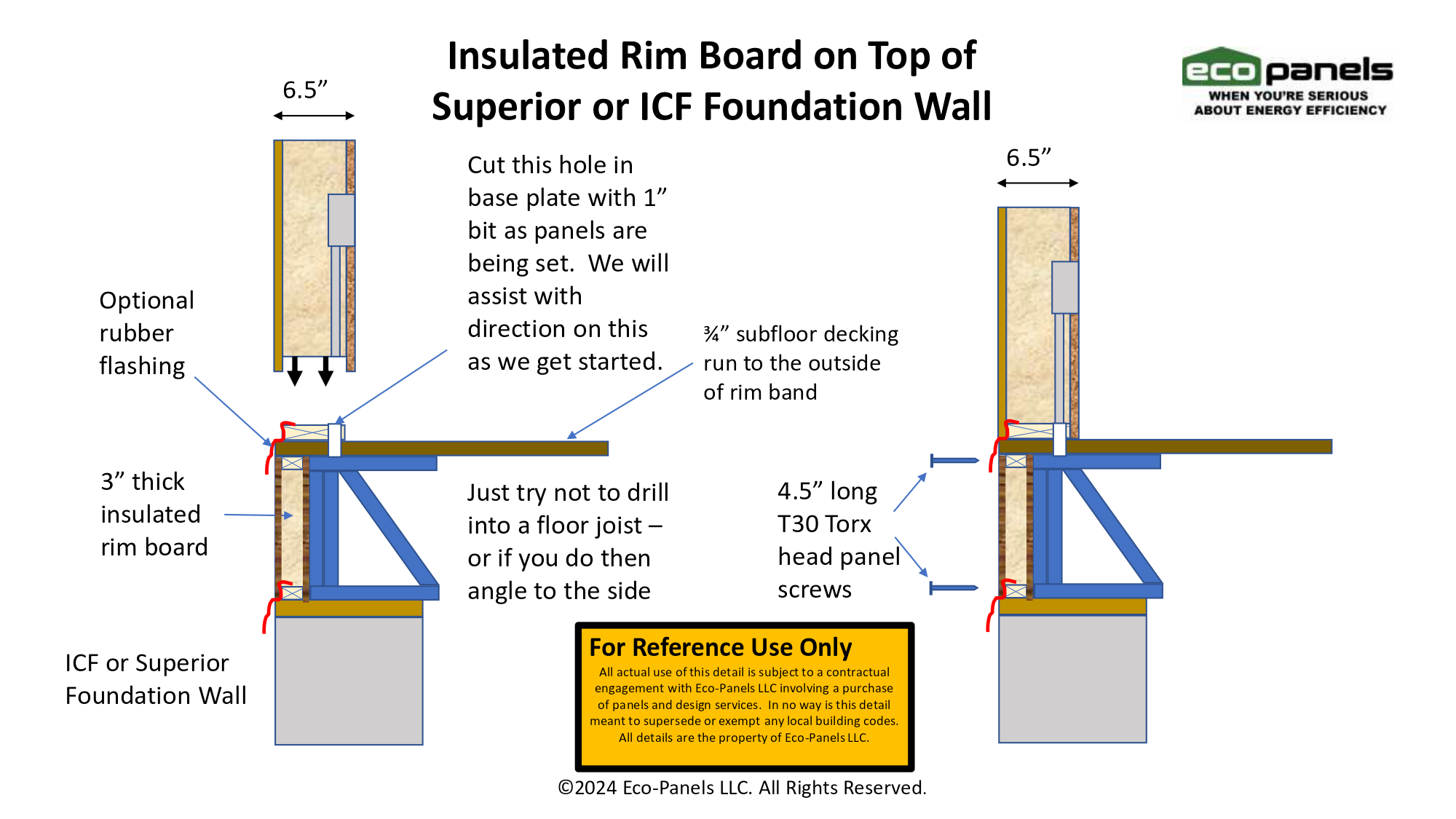

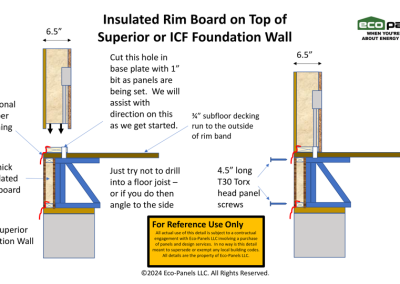

Eco-Panels Wall On Superior Wall Having Floor Truss and Insulated Rim Board - 6.5"

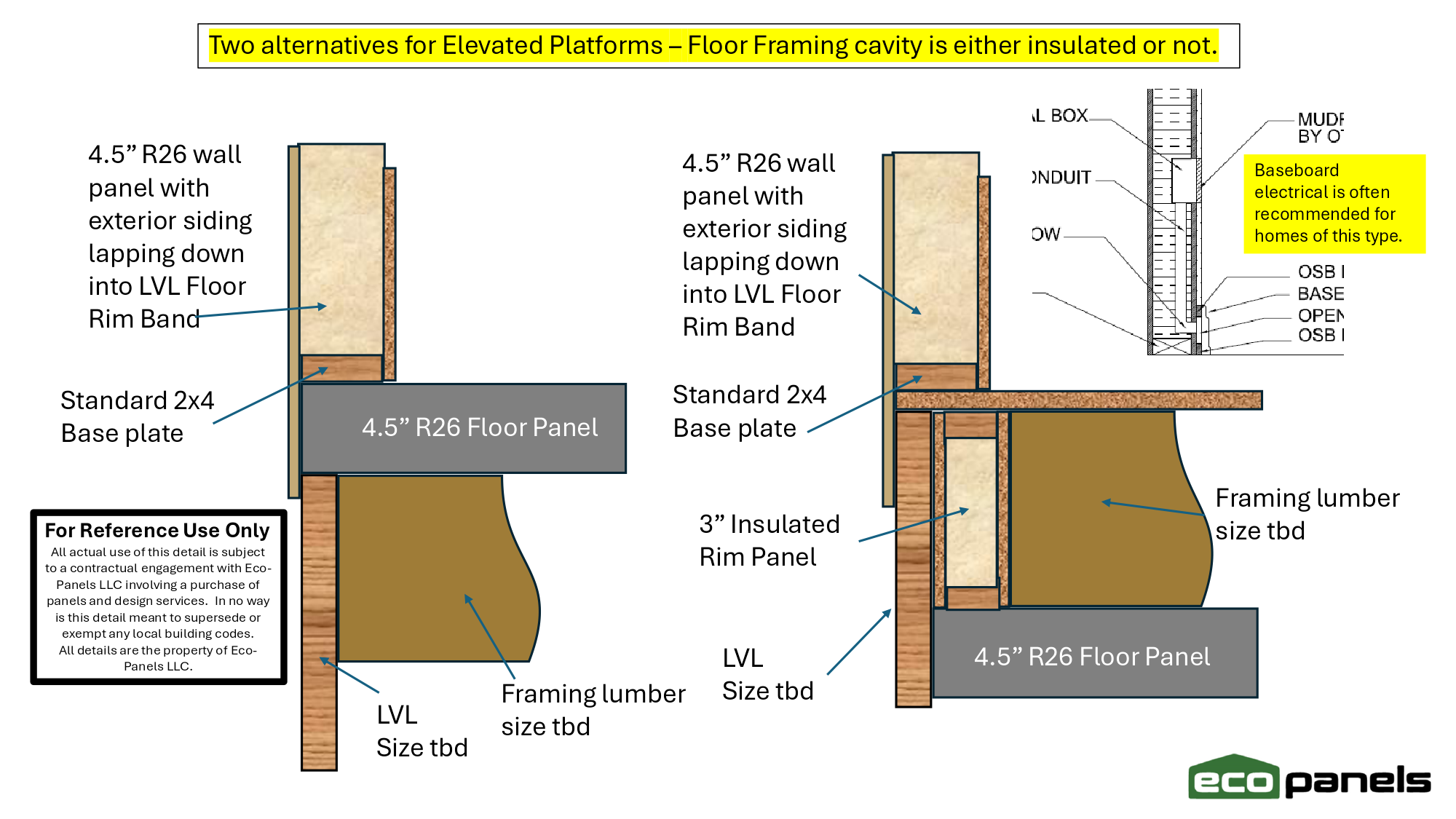

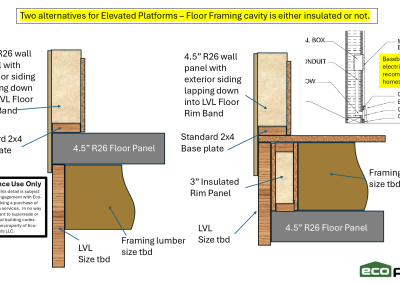

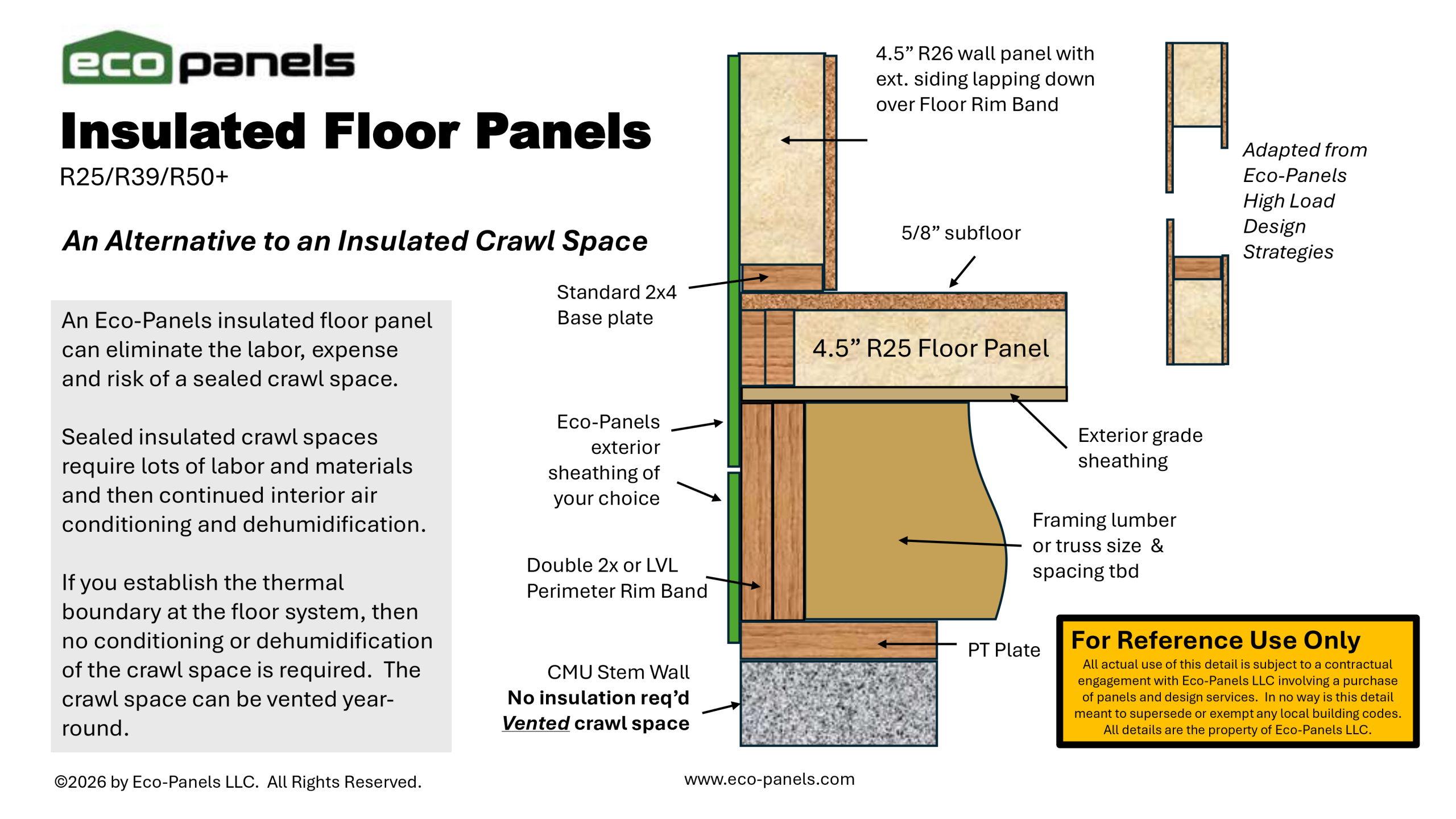

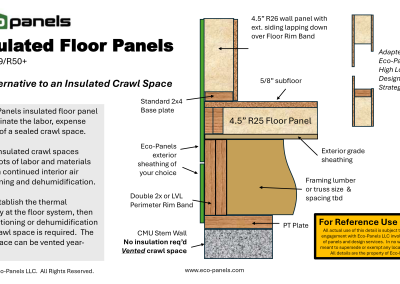

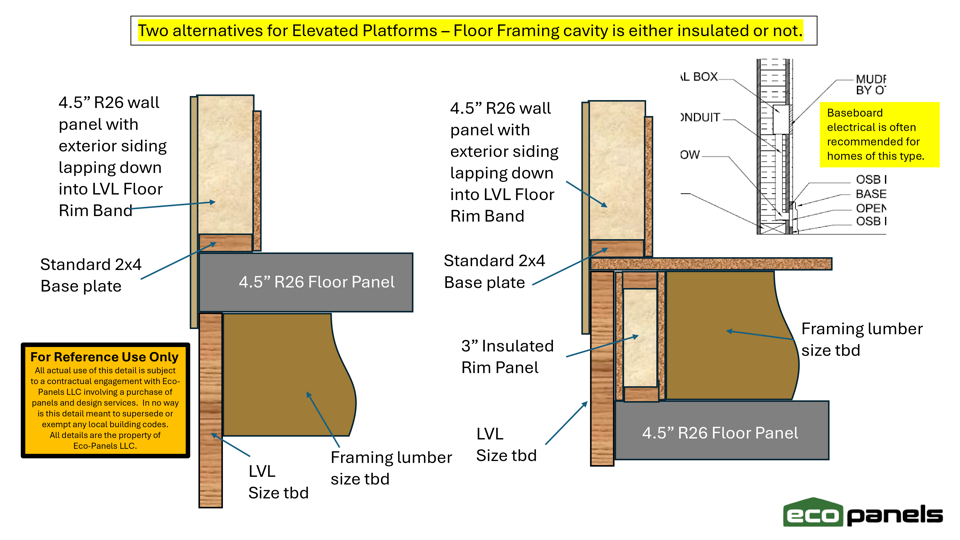

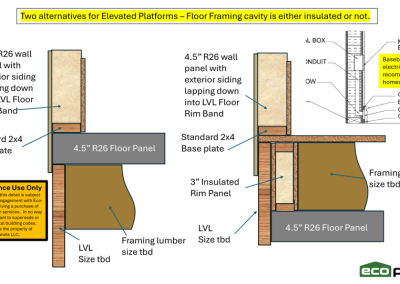

Use Eco-Panels insulated floor panels to avoid the need for a conditioned crawl space.

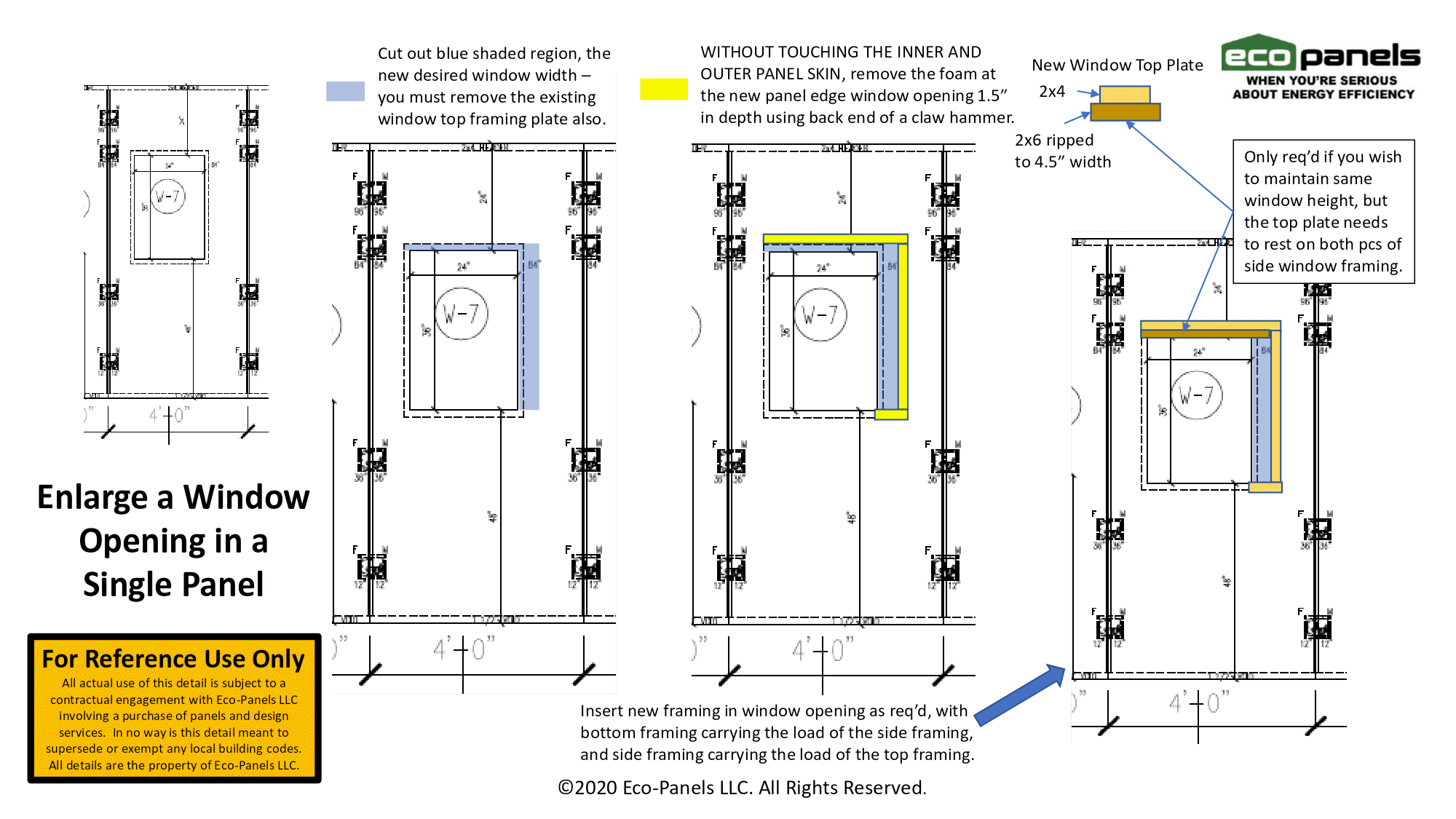

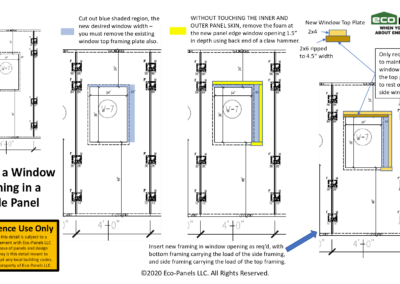

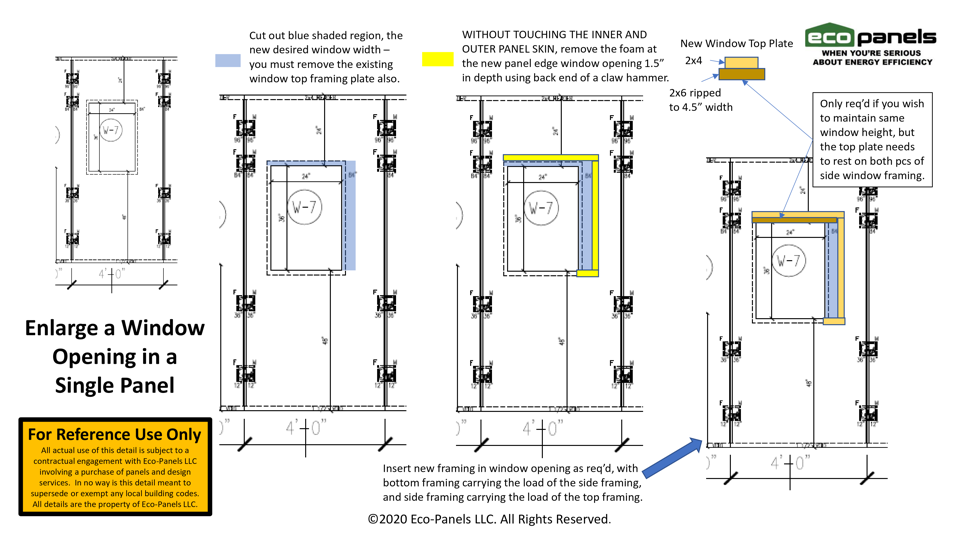

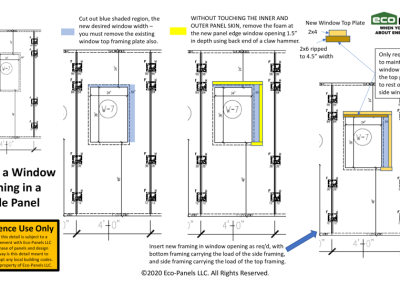

Enlarging a Window Opening within Single Panel

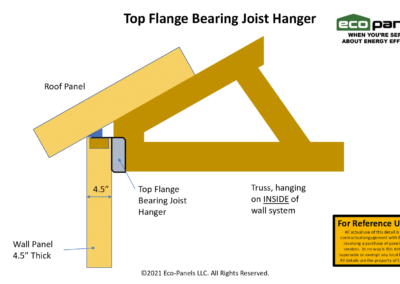

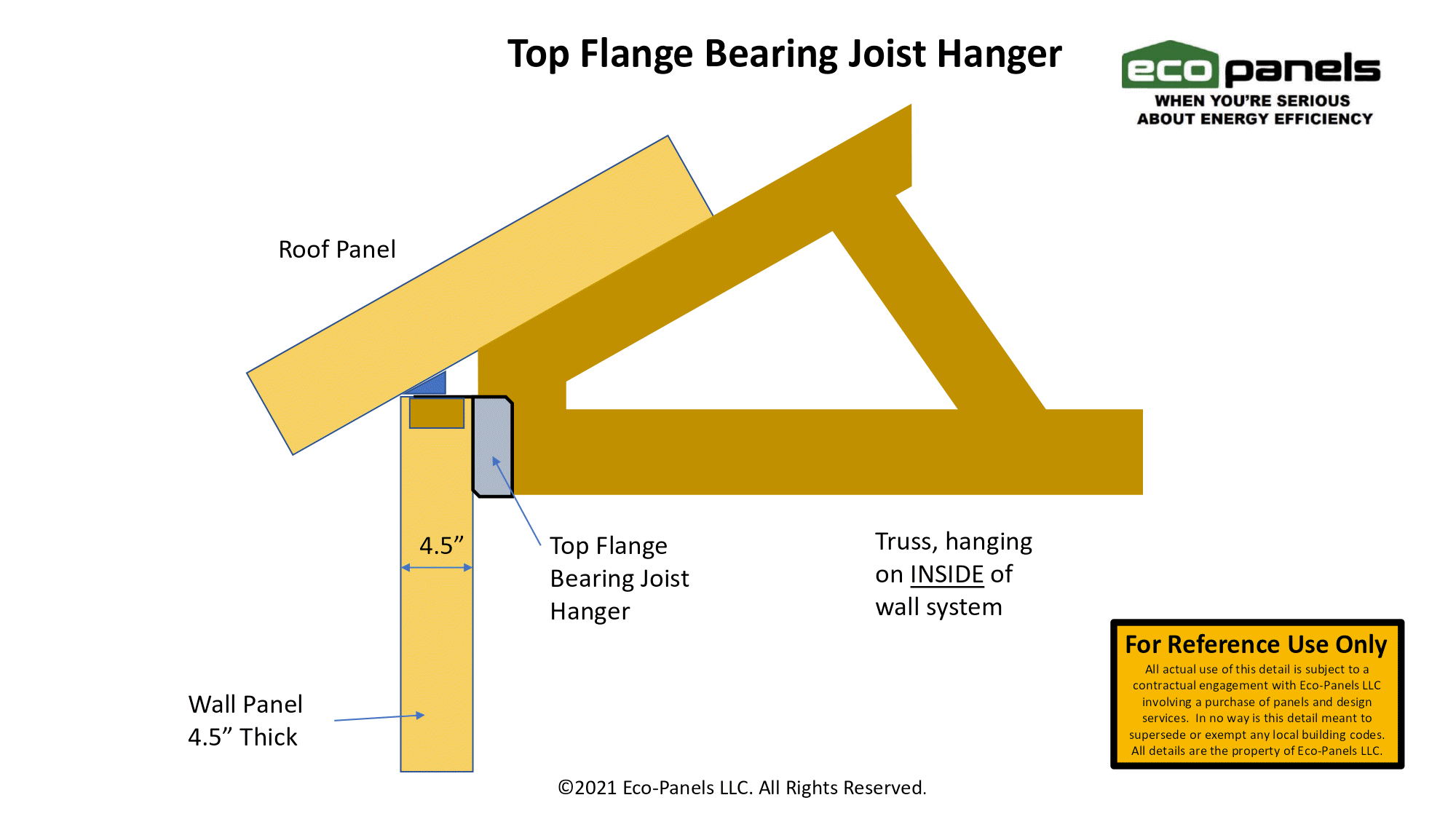

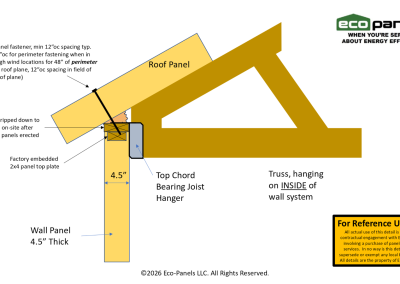

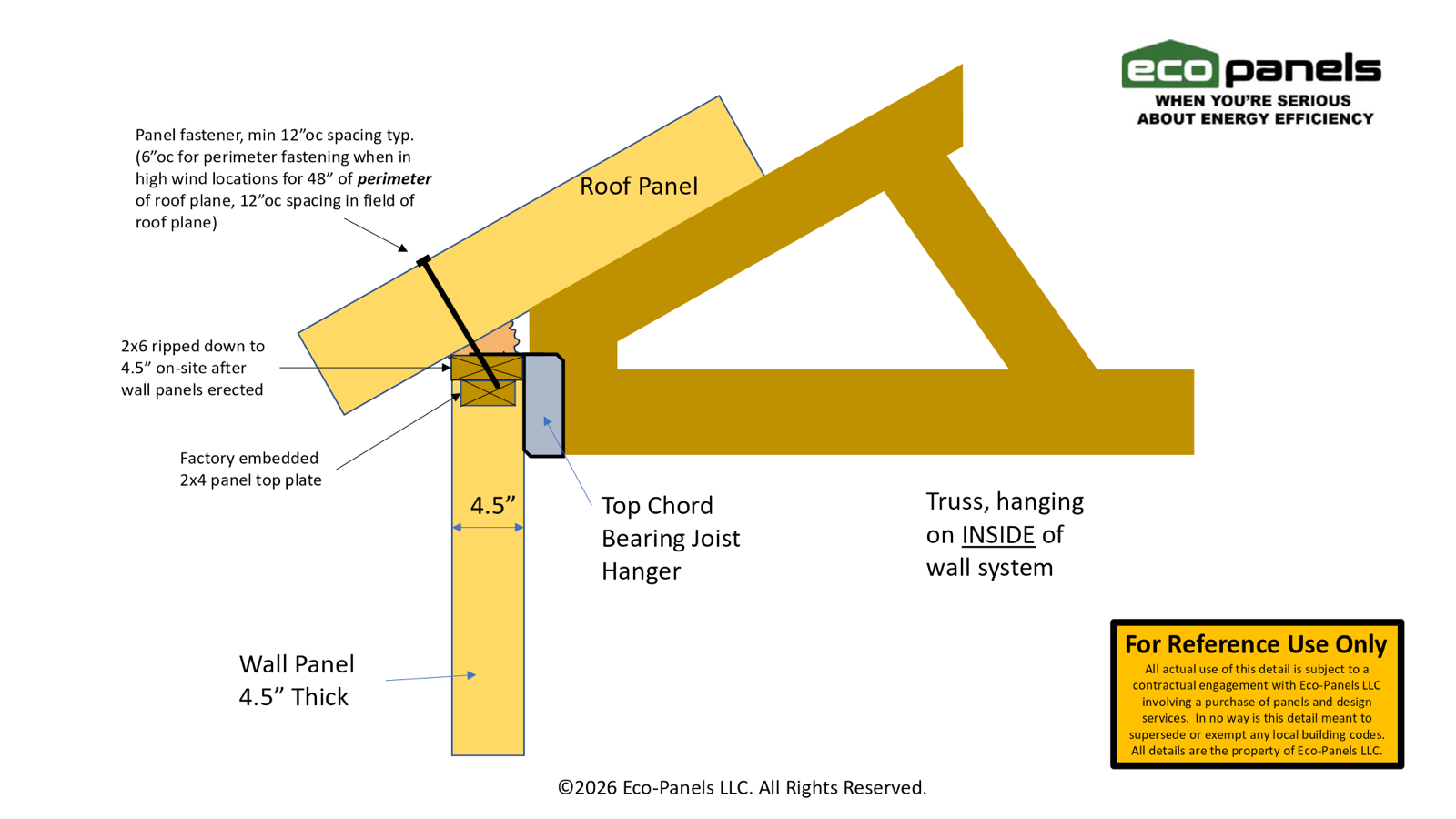

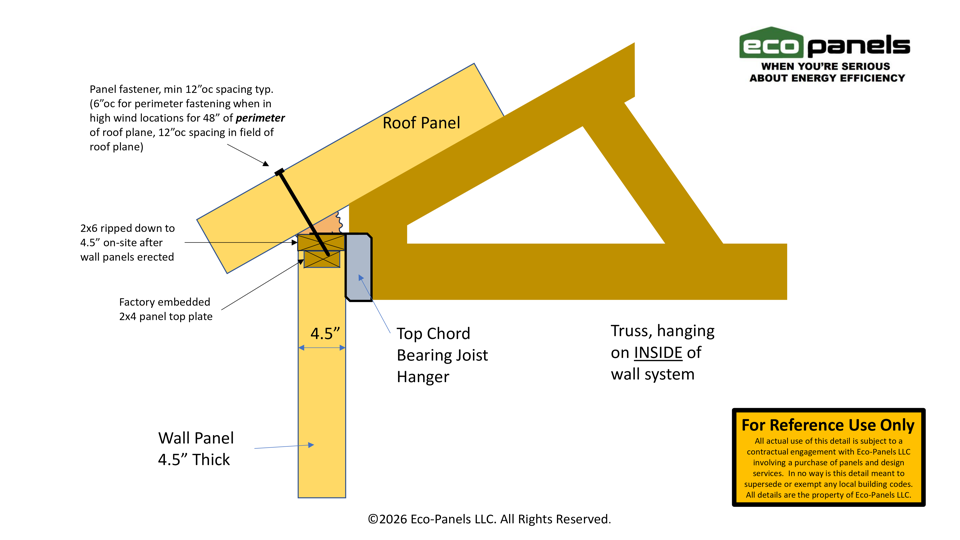

Top flange bearing joist hanger on wall with truss

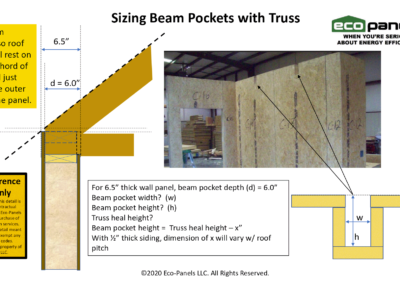

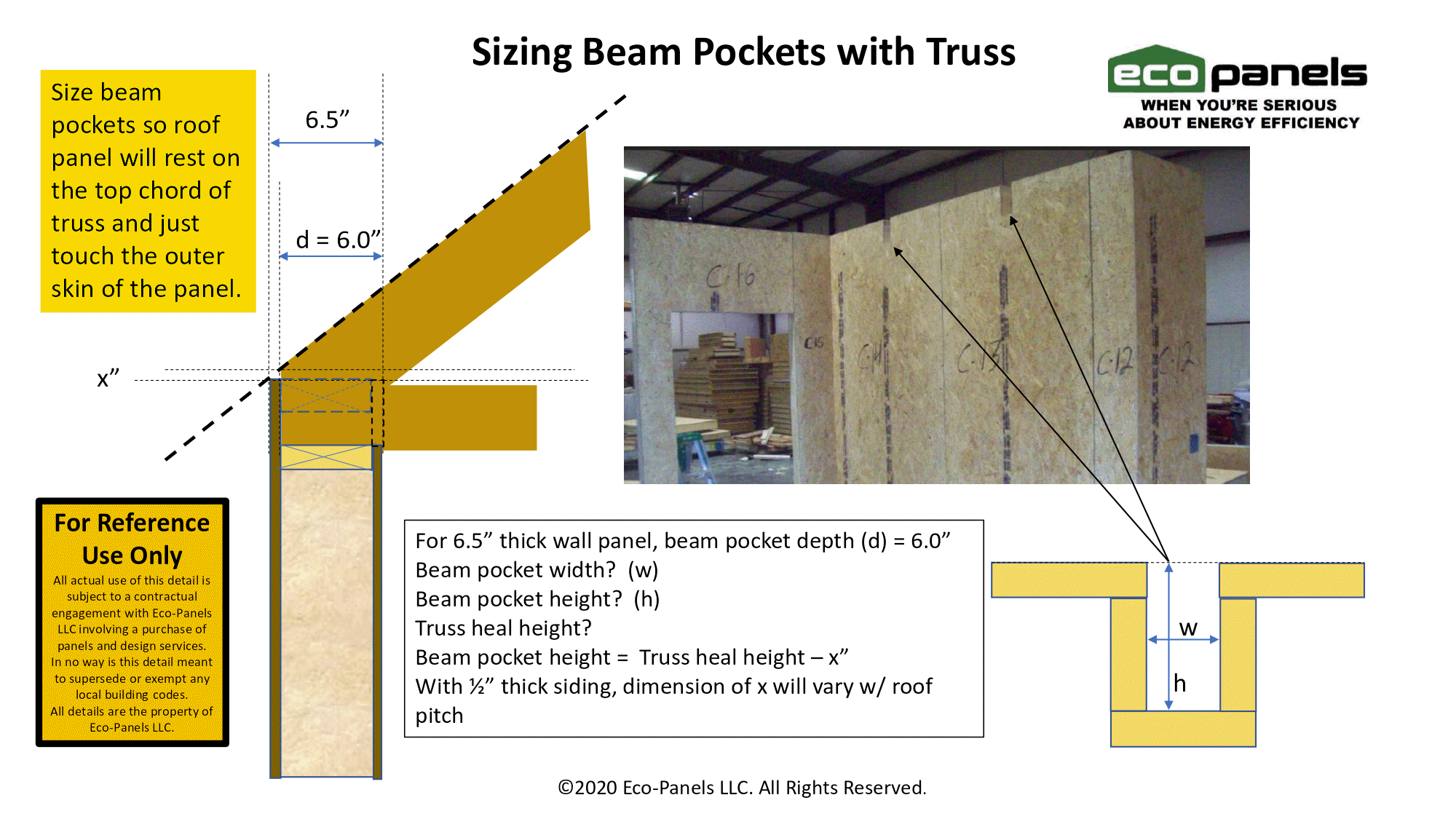

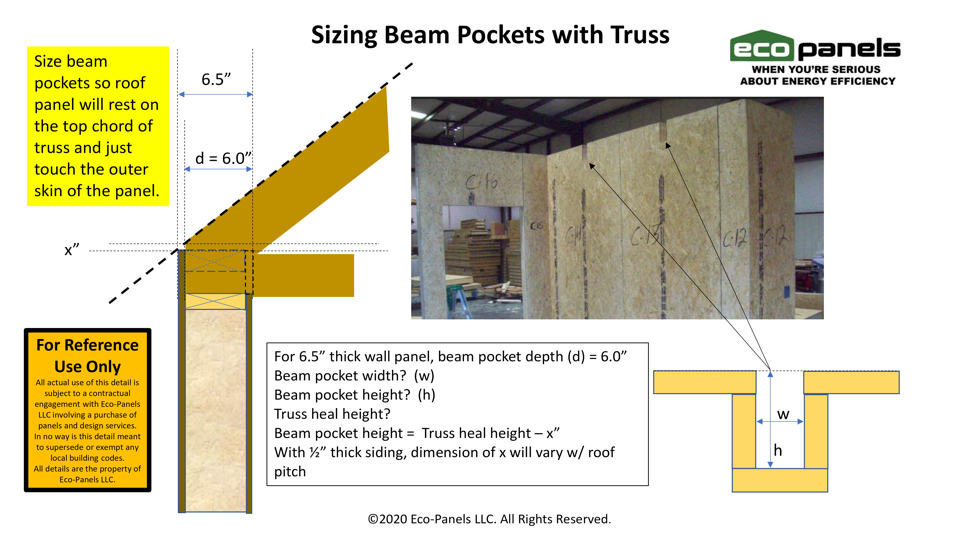

Beam Pockets with Truss

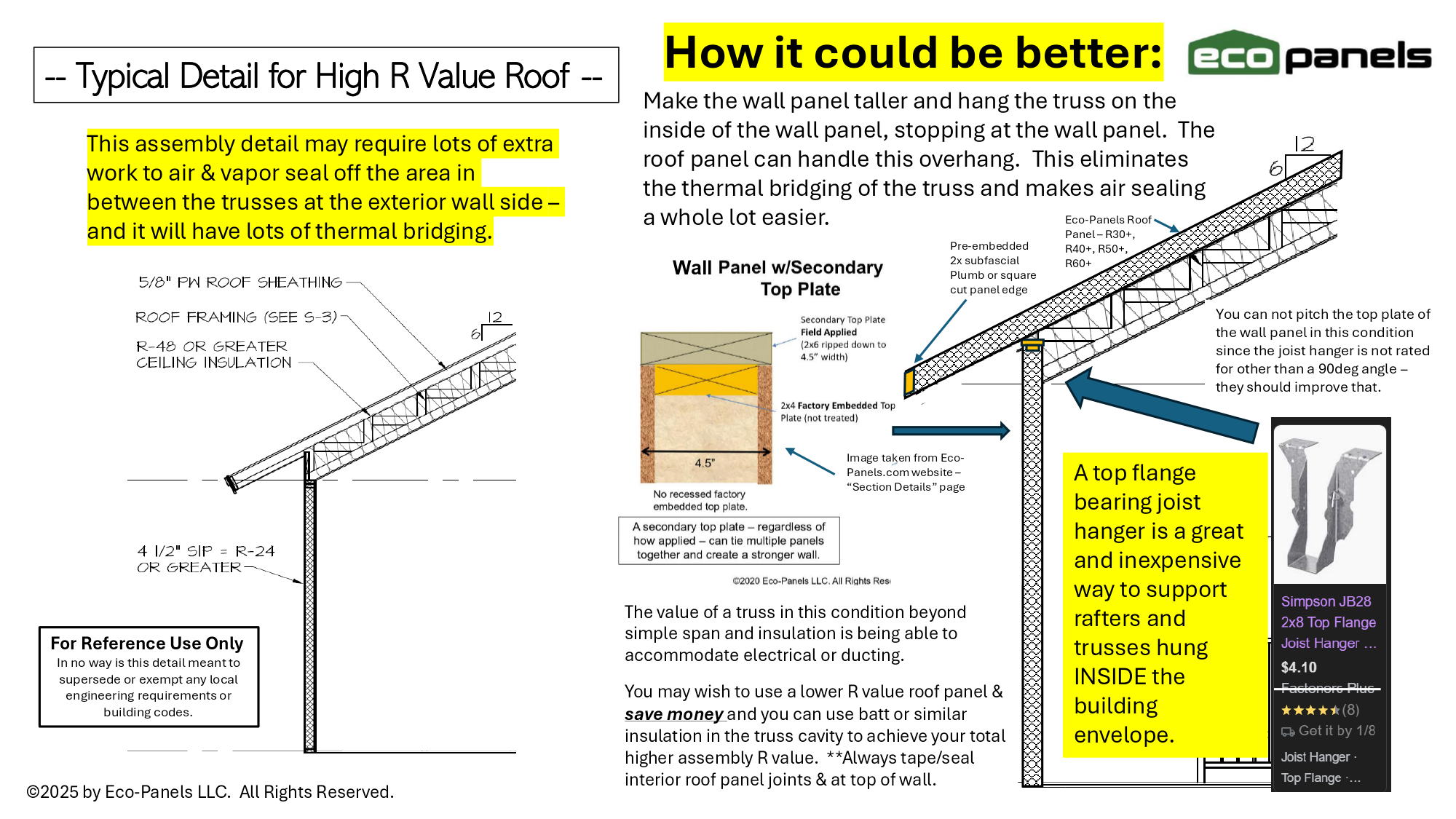

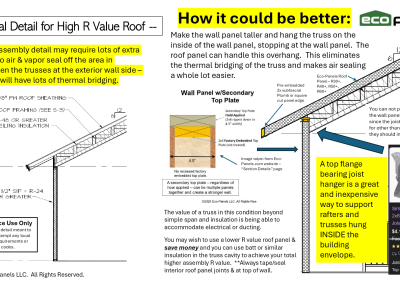

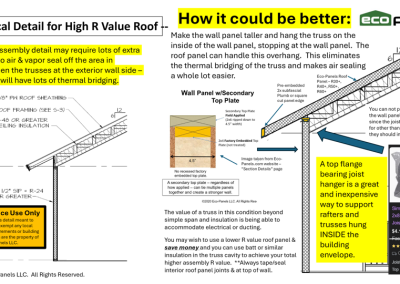

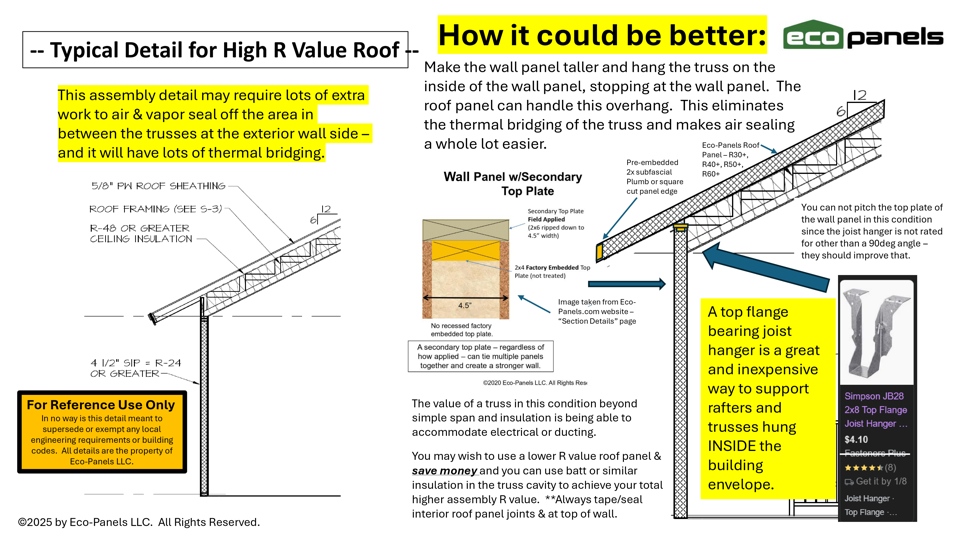

Page explains why hanging a roof truss inside the walls can eliminate thermal bridging and make air sealing easier.

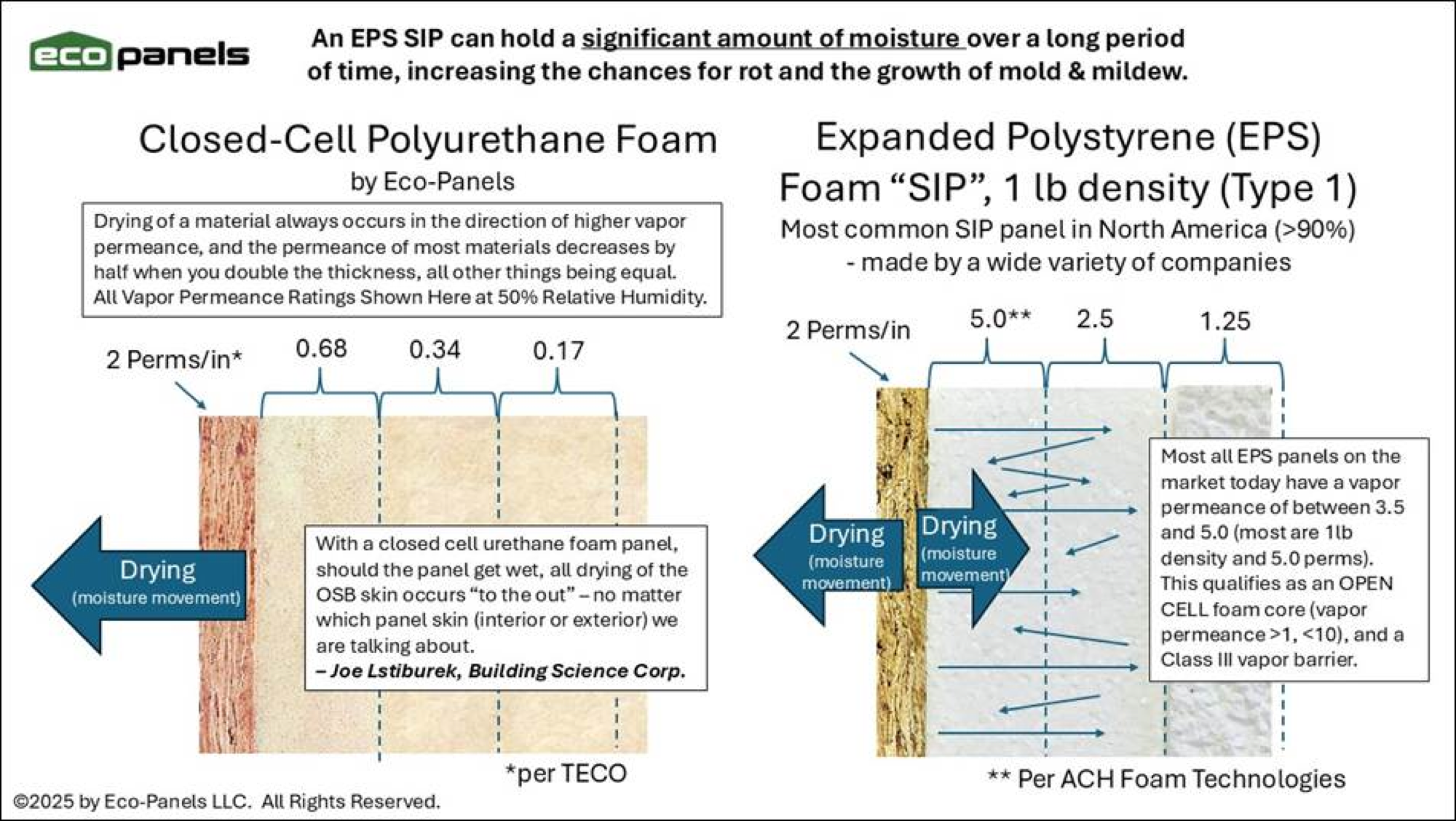

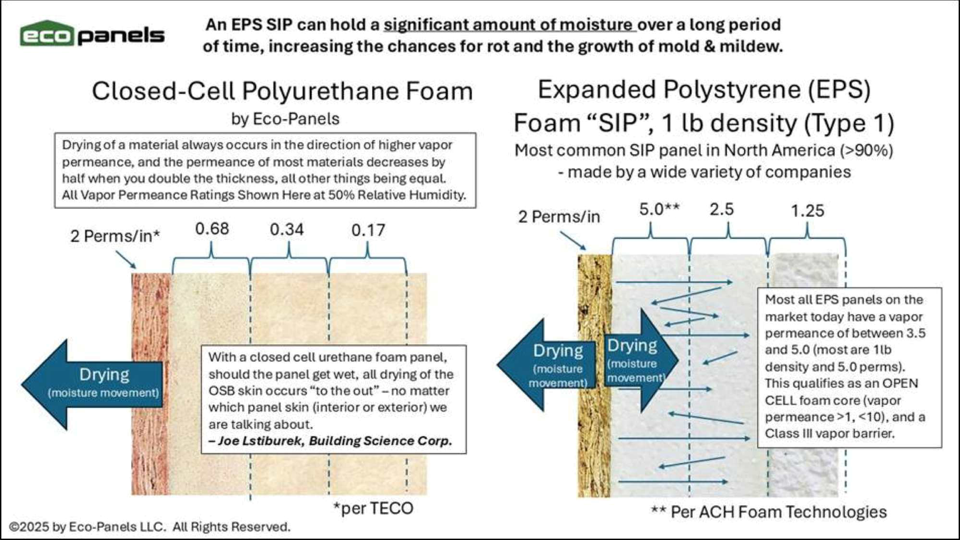

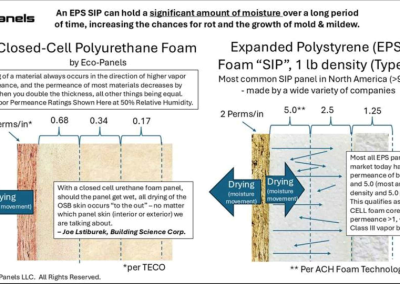

EPS foam can hold moisture, allowing rot and mildew, while Eco-Panels' polyurethane foam doesn't hold moisture and causes wet OSB to dry to the out.

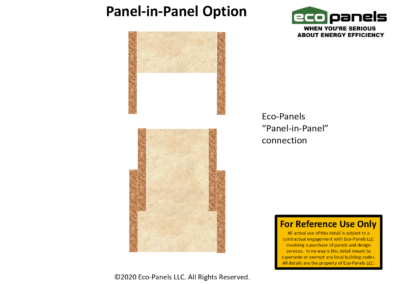

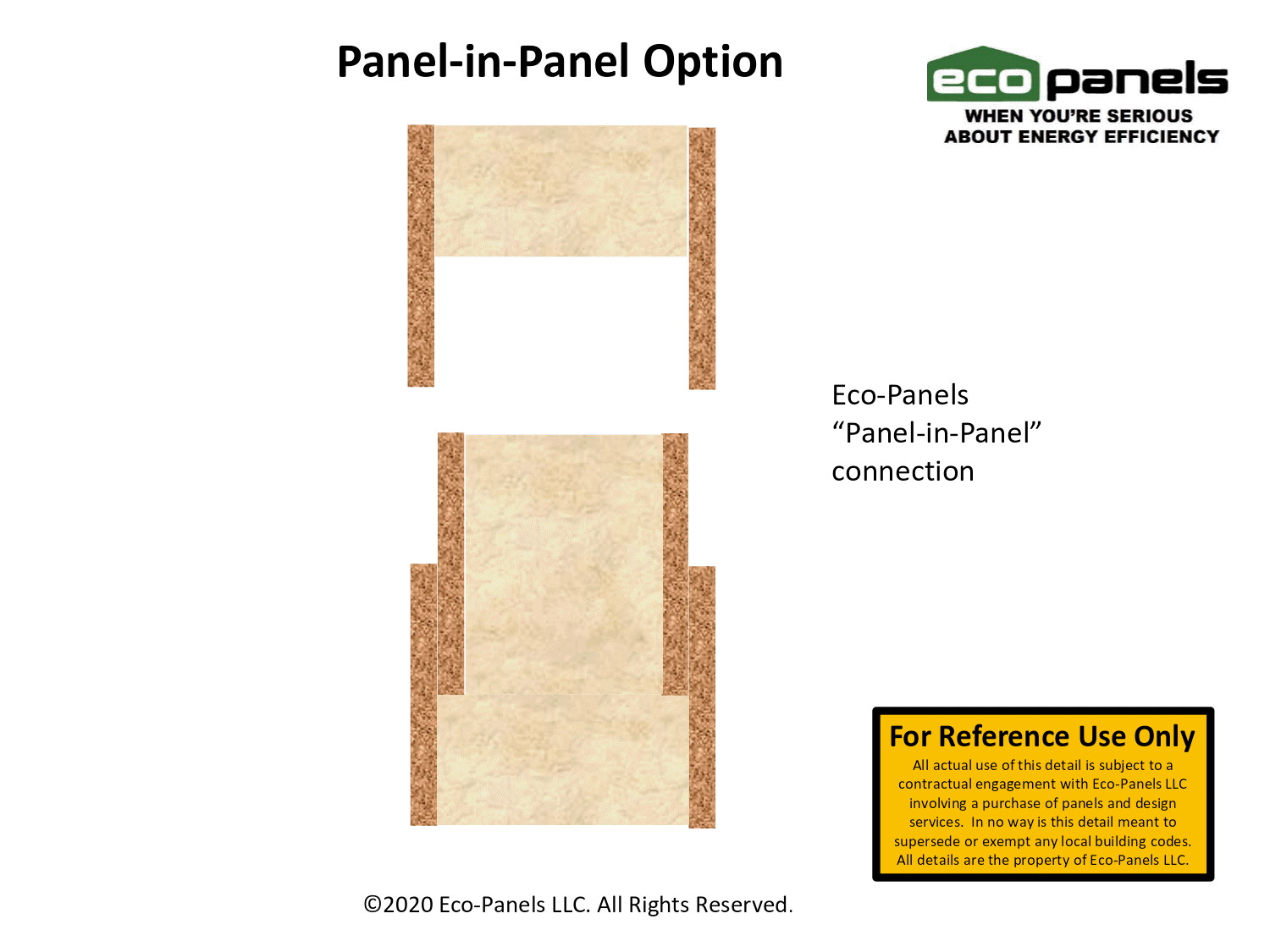

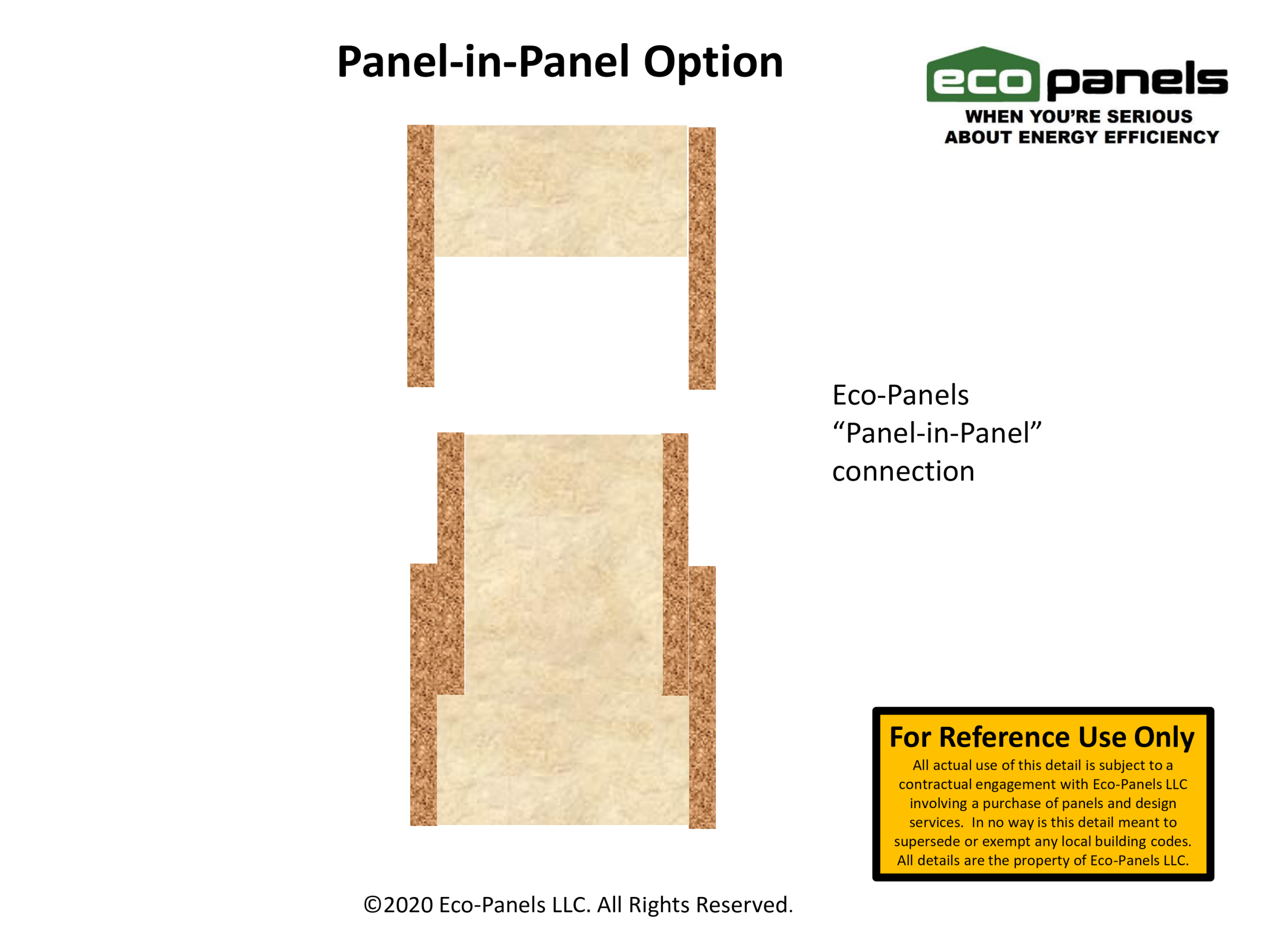

Panel-in-panel connection detail

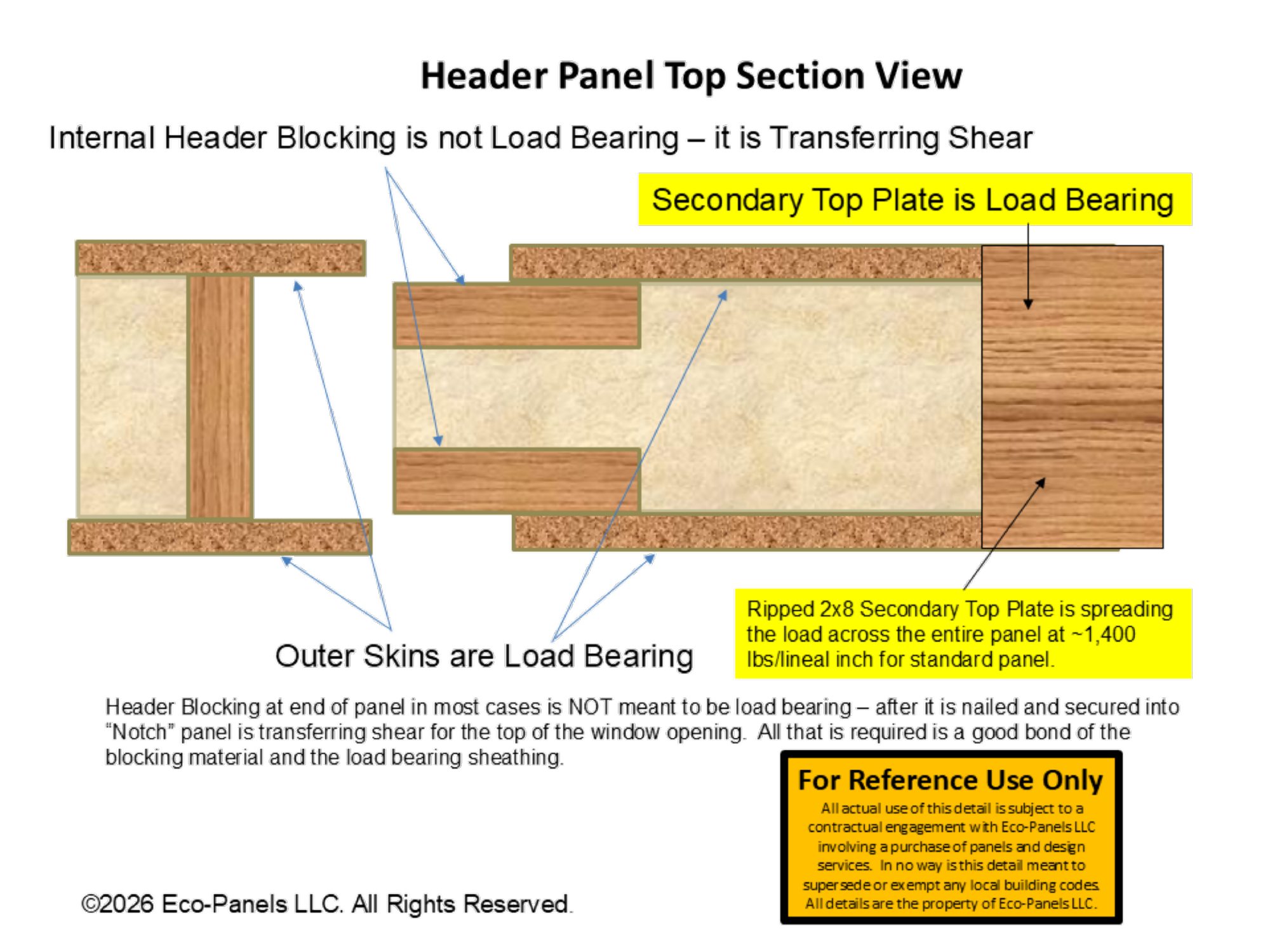

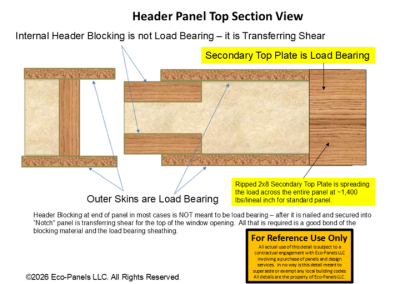

Internal header blocking is not load bearing, it is transferring shear. The Secondary Top Plate is load bearing.

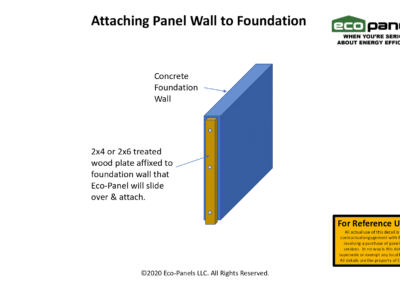

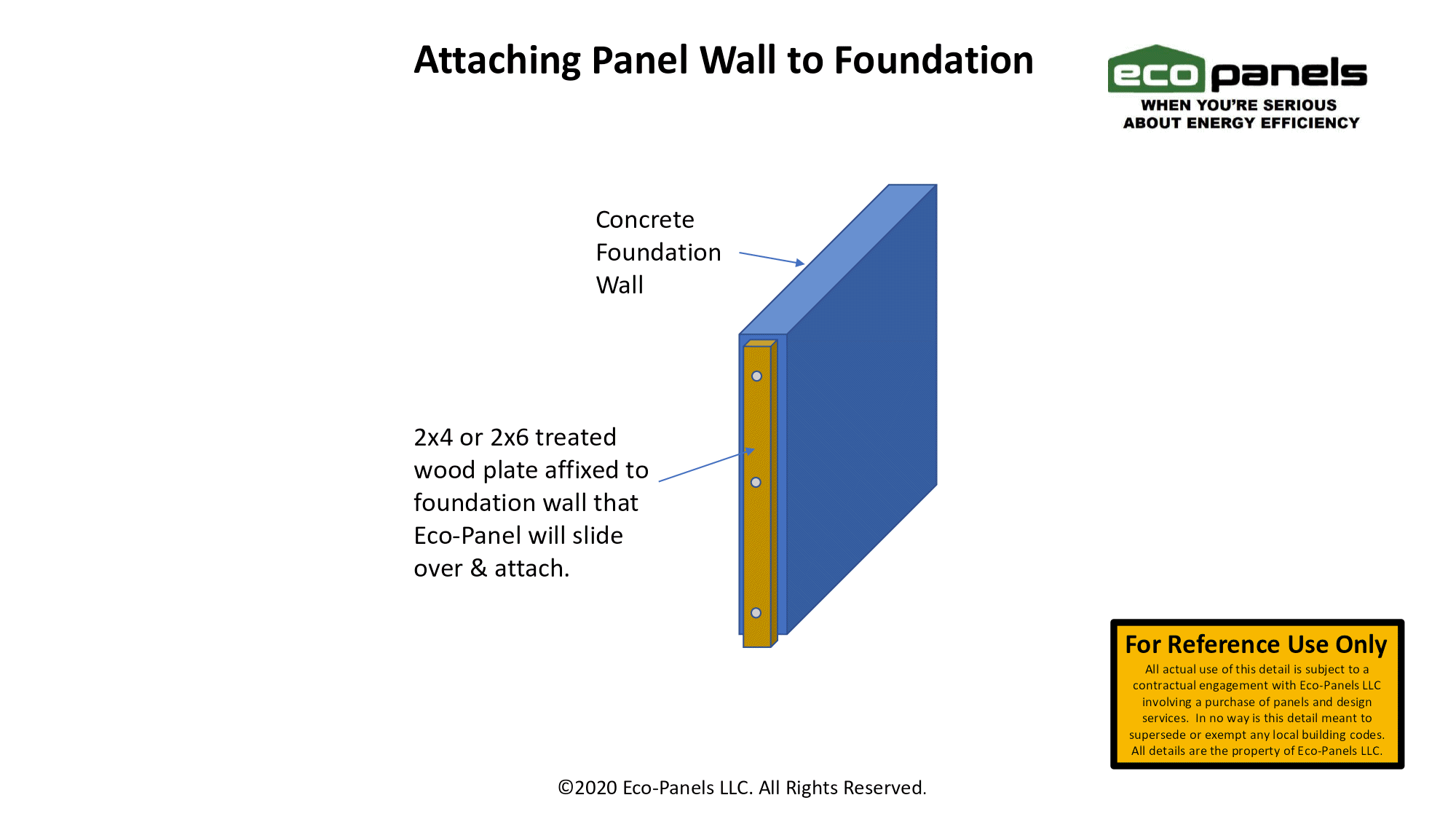

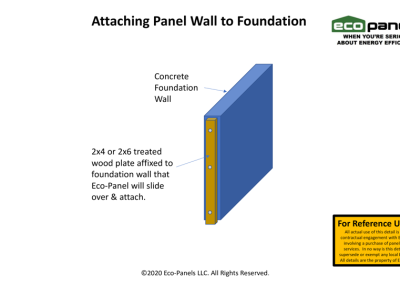

Attaching Panel Wall to Foundation Wall

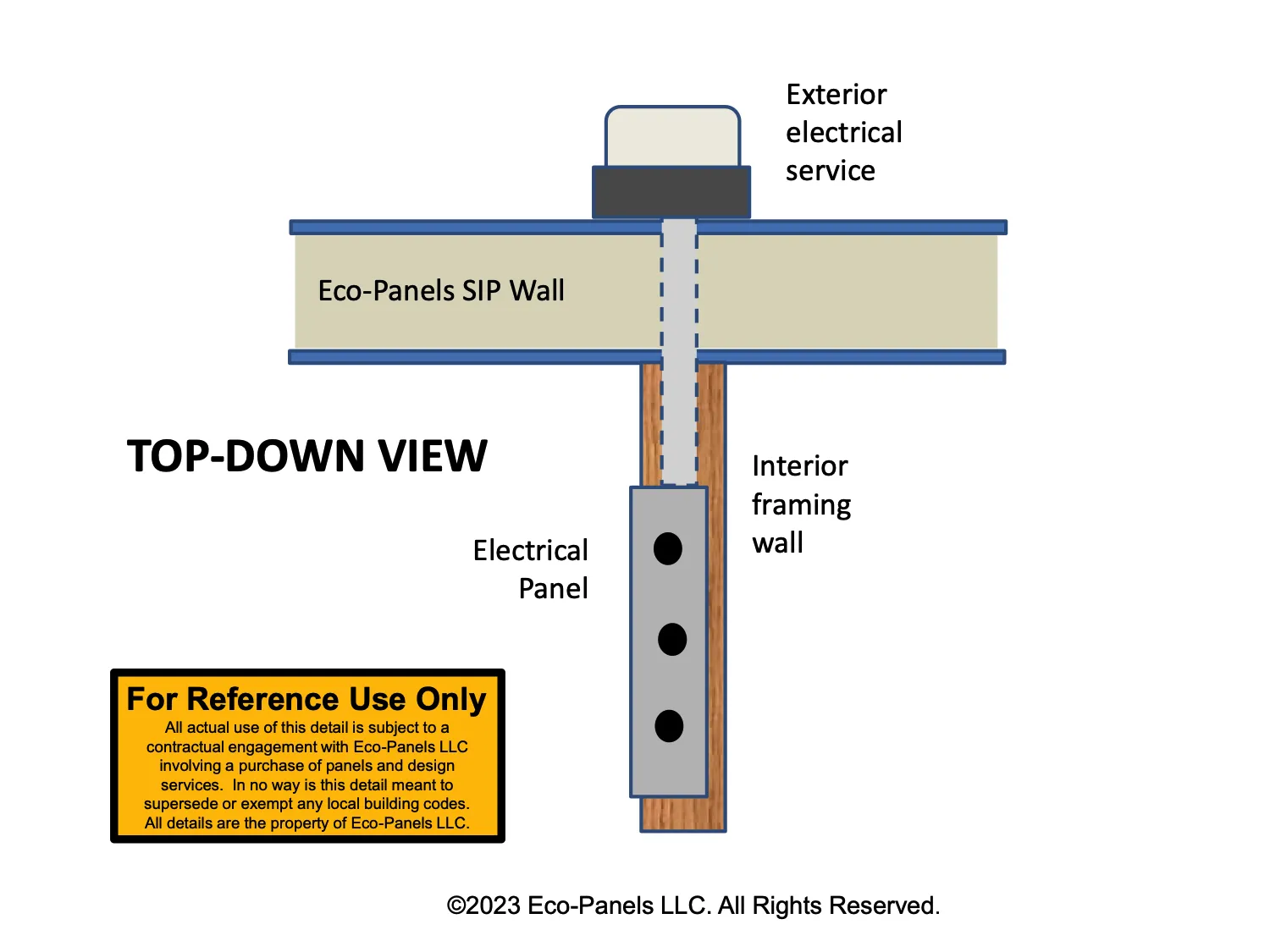

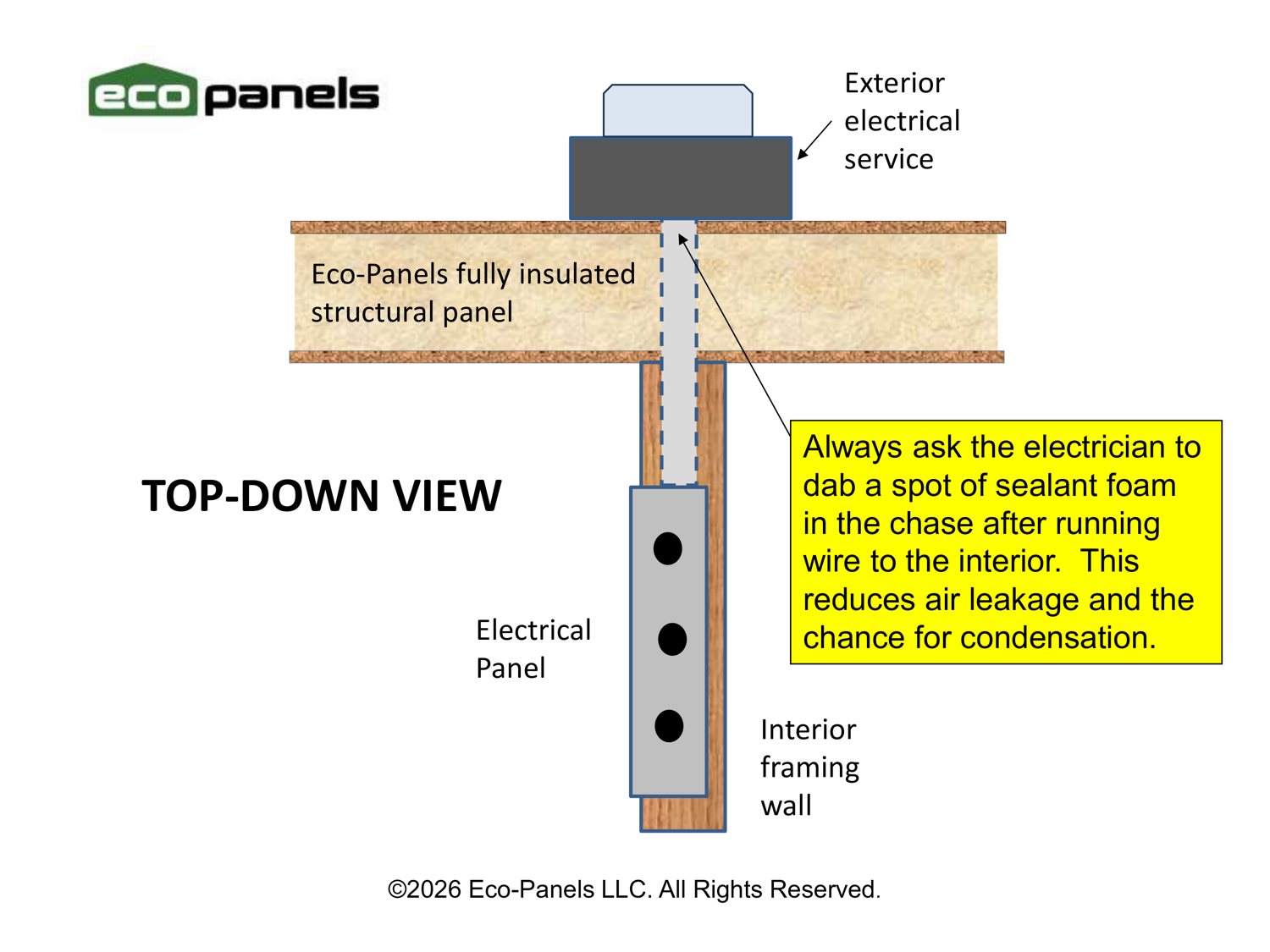

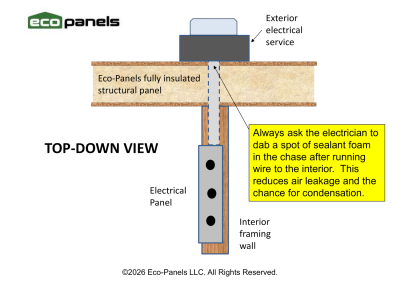

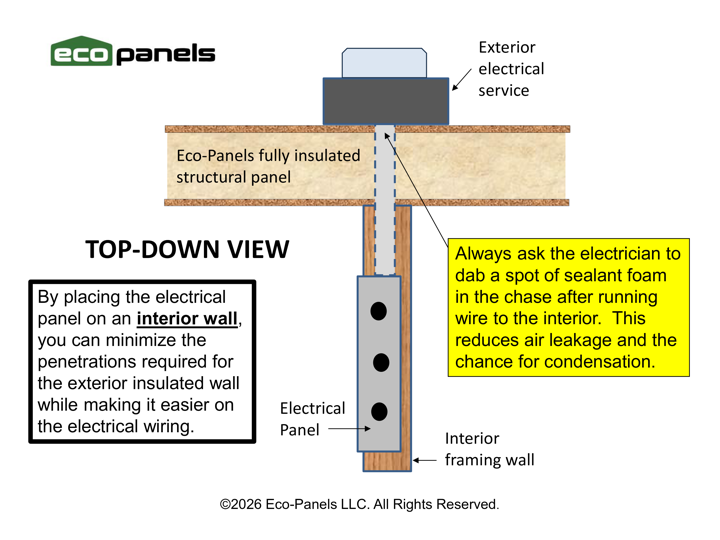

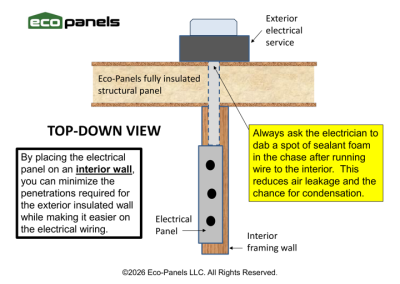

Diagram shows how an electrical panel should be placed on an external wall.

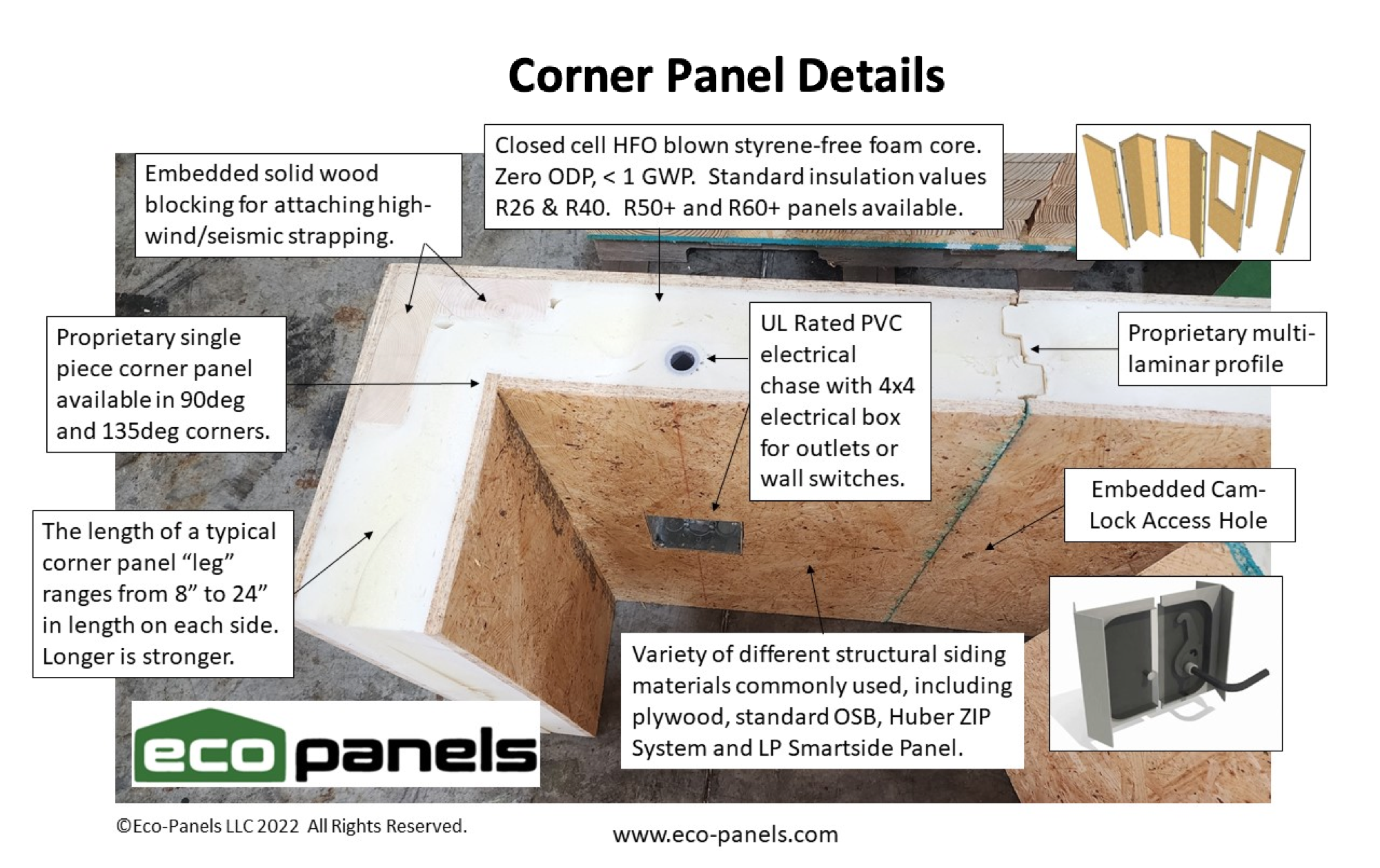

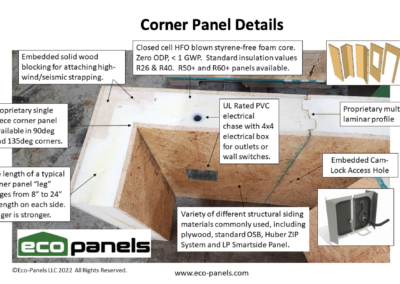

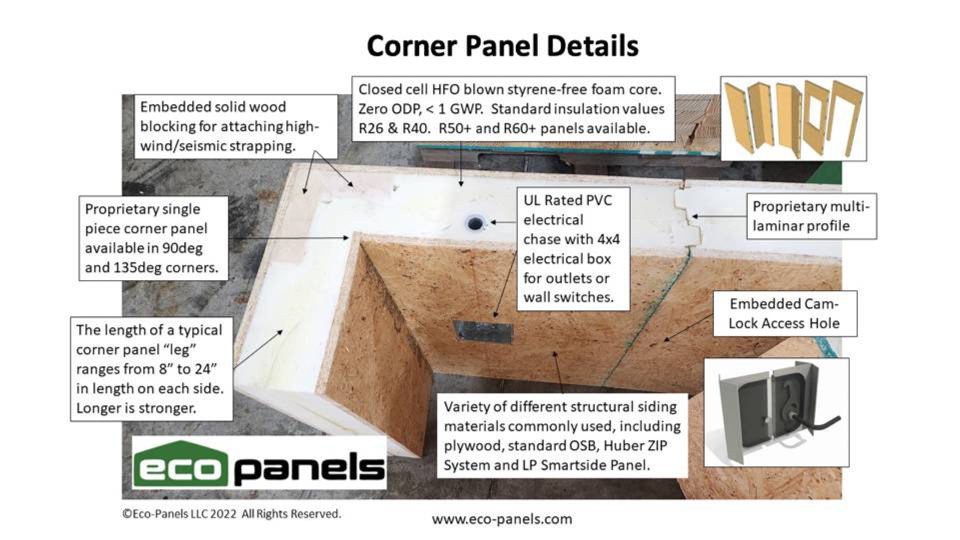

Diagram showing many details of a corner panel.

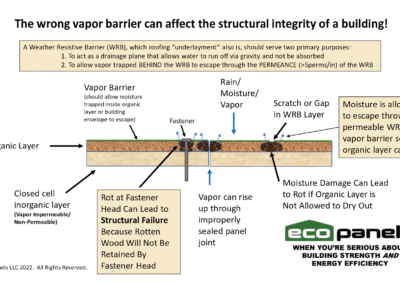

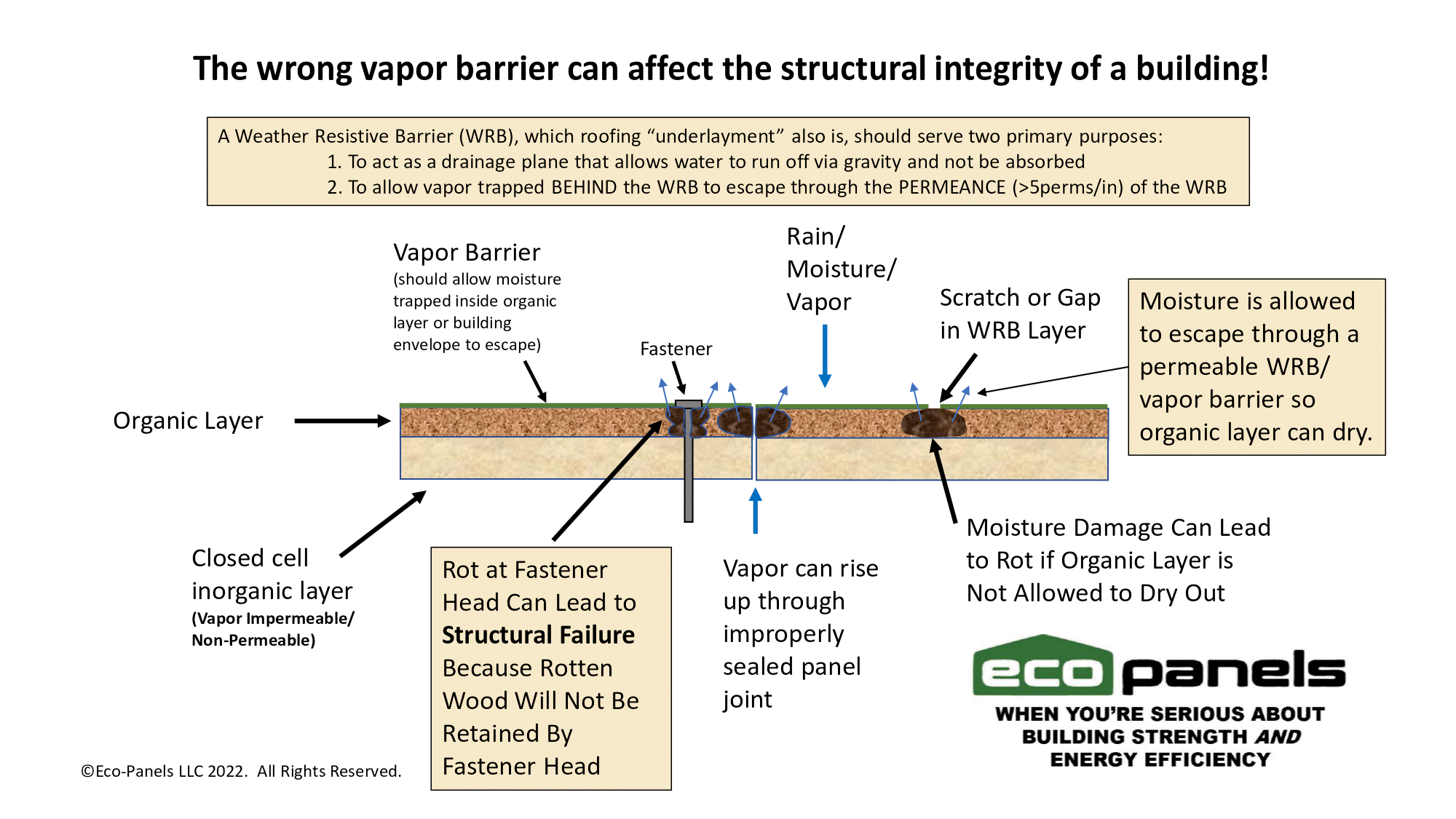

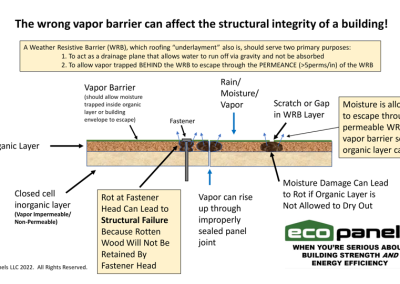

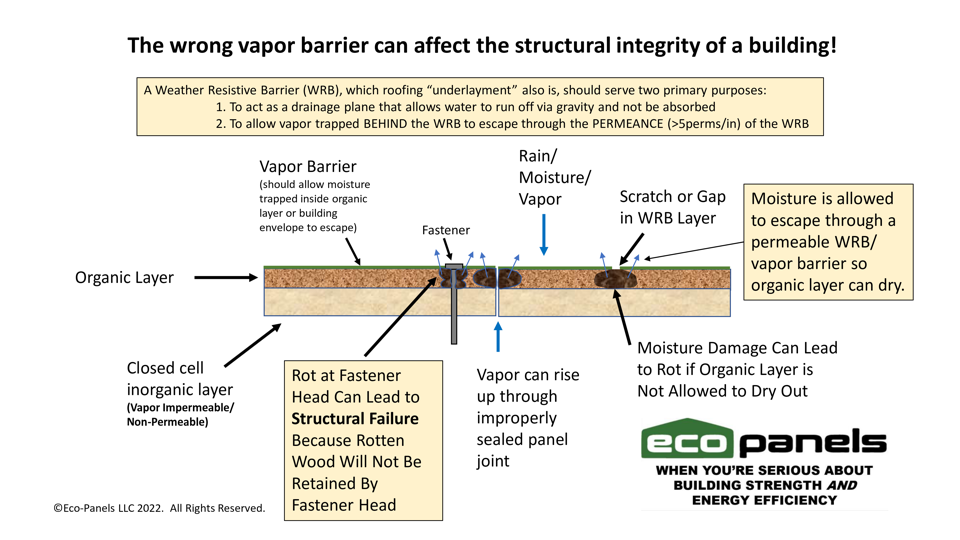

The Importance Of A Weather Resistive Barrier

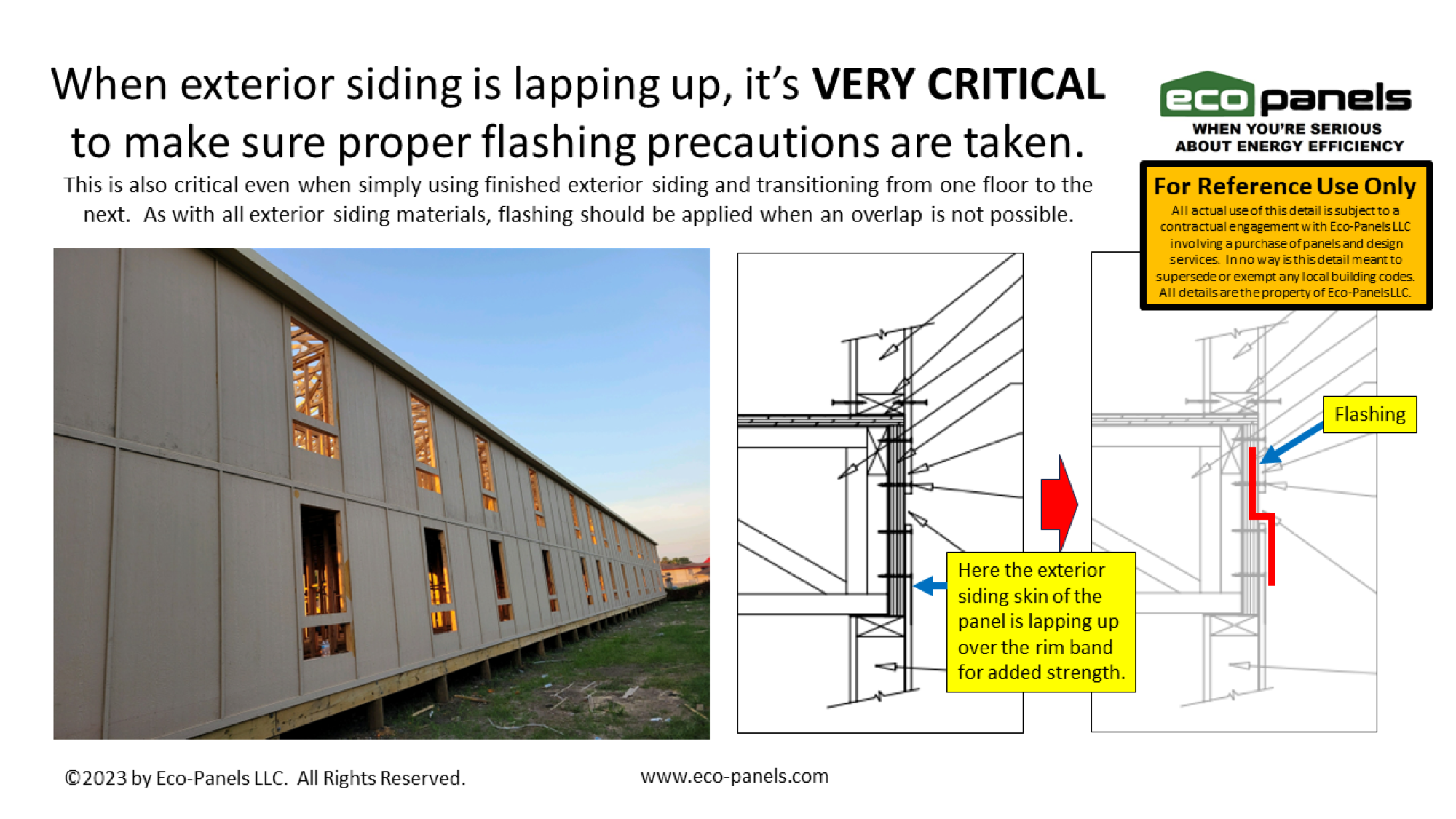

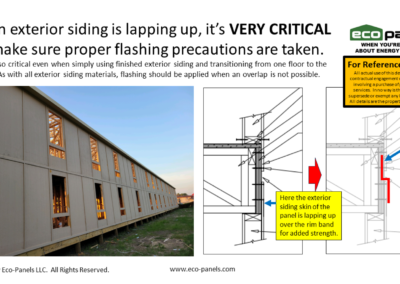

Diagrams showing proper flashing techniques for exterior lapping siding

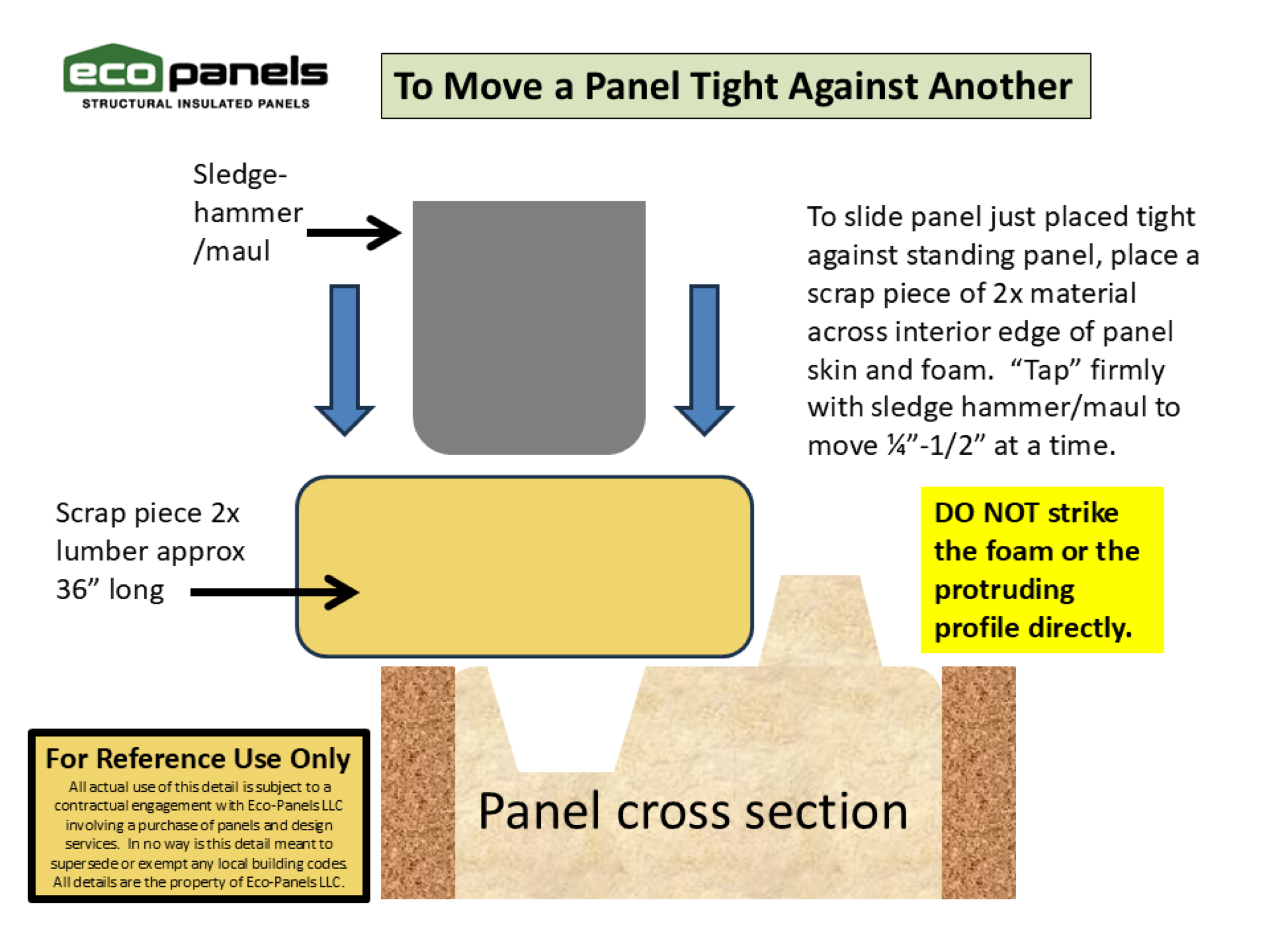

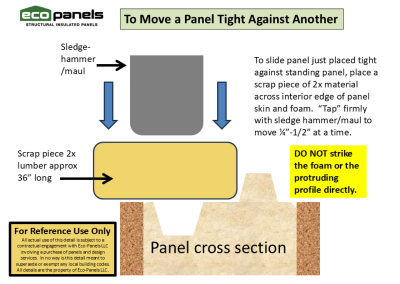

To slide panel just placed tight against the adjoining panel, place a scrap piece of 2x material across the interior edge of panel skin and foam. "Tap" firmly with sledge hammer / maul to move 1/4"-1/2" at a time. DO NOT strike the foam or the protruding profile directly.

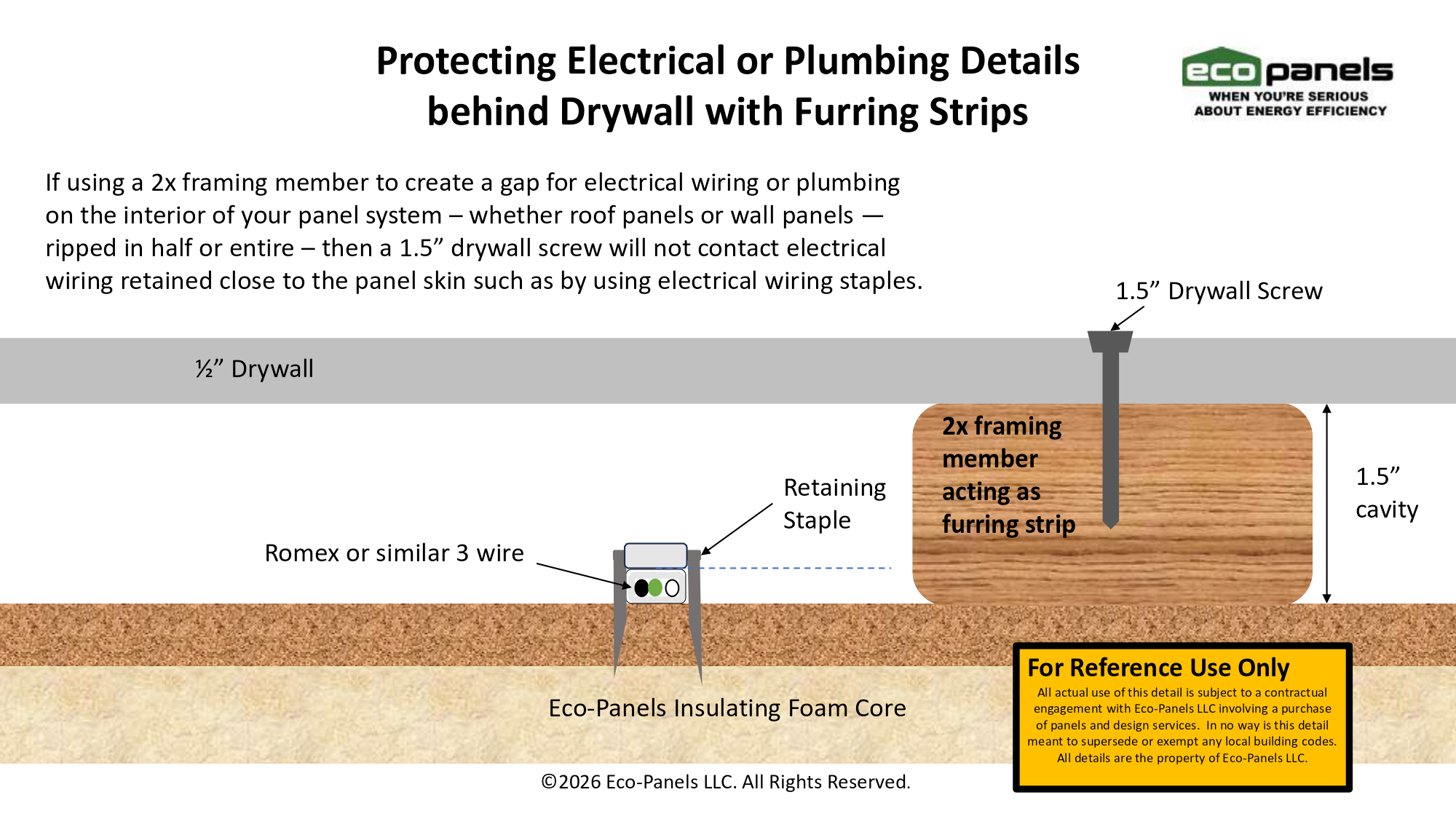

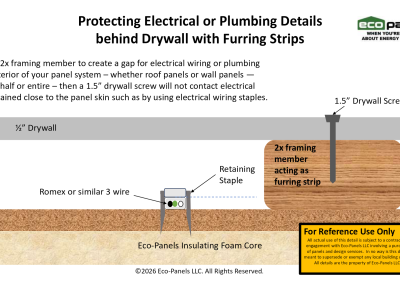

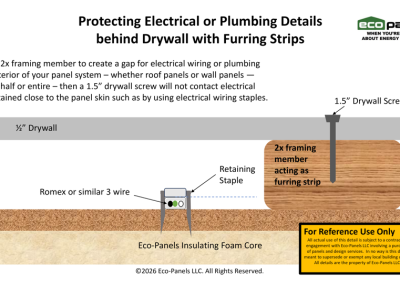

Protect surface mounted electrical wiring or plumbing by using 2x furring strips and drywall. 1.5" drywall screws won't reach the wiring or pipes.
